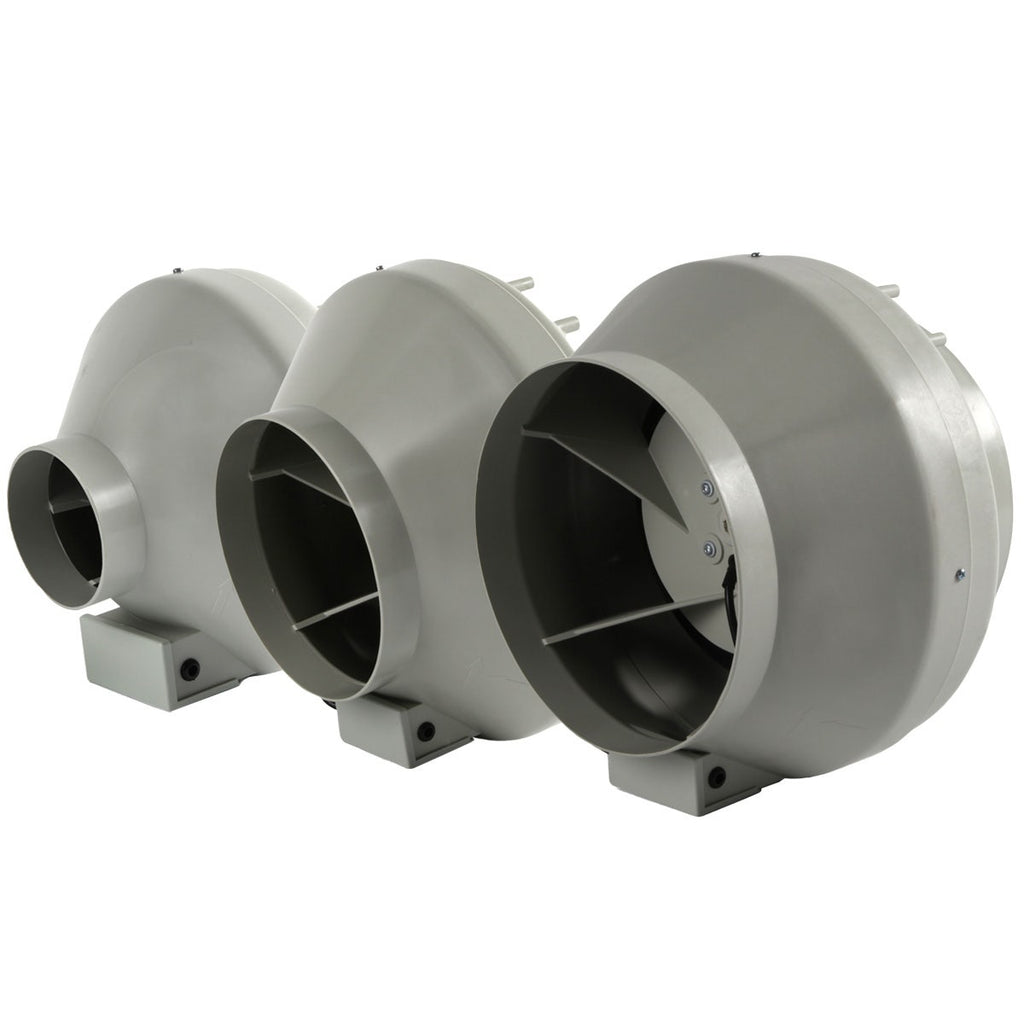

  • Group shot
  • 4
  • 5
  • 5
  • 6
  • 6
  • 8
  • 8
  • 10
  • 10
  • 12

Systemair RVK

SKU:

Choose the size of your duct fan:

4-inch (100mm) – 184m3/hr

£64.95 £64.95
Systemair RVK
  • Group shot
  • 4
  • 5
  • 5
  • 6
  • 6
  • 8
  • 8
  • 10
  • 10
  • 12

Systemair RVK Fans - The Toughest and Most Dependable in the Business

The Systemair RVK range of In-line Duct Fans are ideal for removing old air or supplying fresh air to your grow-space. Systemair fans are of excellent quality and are amazingly reliable

  • Systemair – Top In-line duct fan manufacturer
  • Removes stale air from your grow-space
  • Can be used to supply fresh air to your grow-space
  • Powerful – large air-flow for their size
  • Maintenance-free and highly reliable

Contains:

1 x Systemair RVK Sileo (choose your size above)

The Systemair RVK will require the fitting of an electrical cable (not supplied). See the links below for appropriate cables in 2m and 5m sizes:

2 Metre Mains Lead (3-Core Black) With Moulded 5 Amp Plug & Stripped Ends

5 Metre Mains Lead (3-Core Black) With Moulded 5 Amp Plug & Stripped Ends

How Systemair RVKs Work:

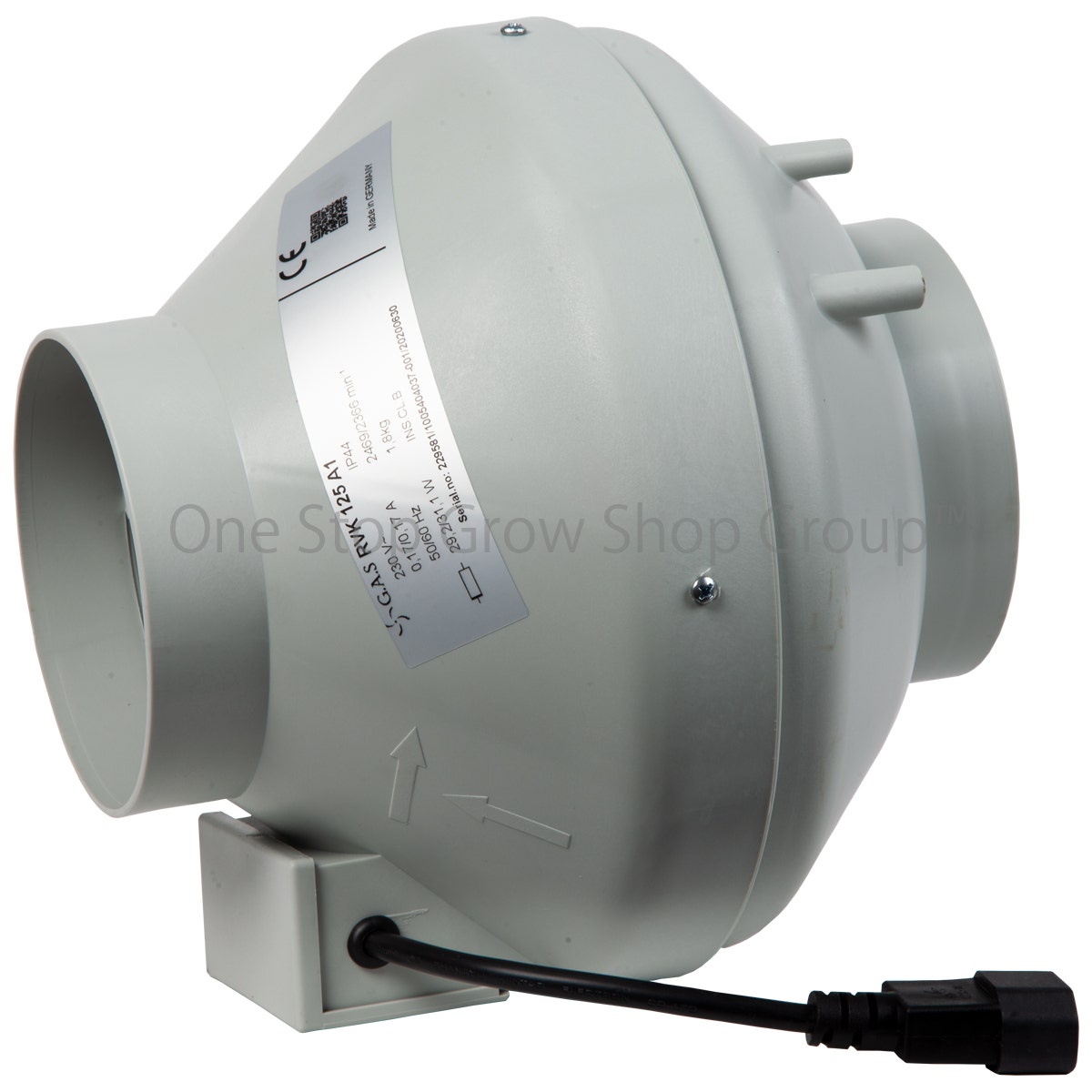

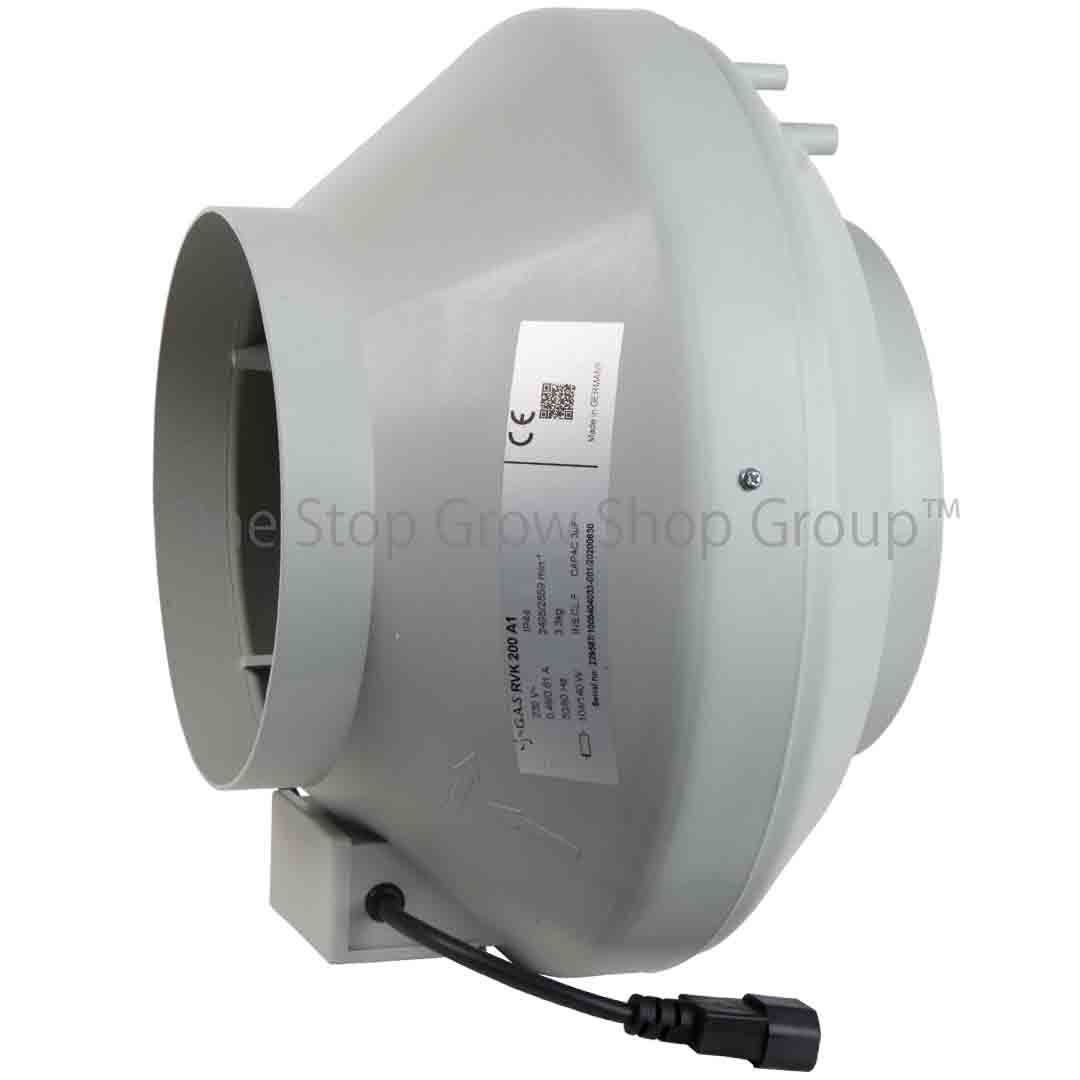

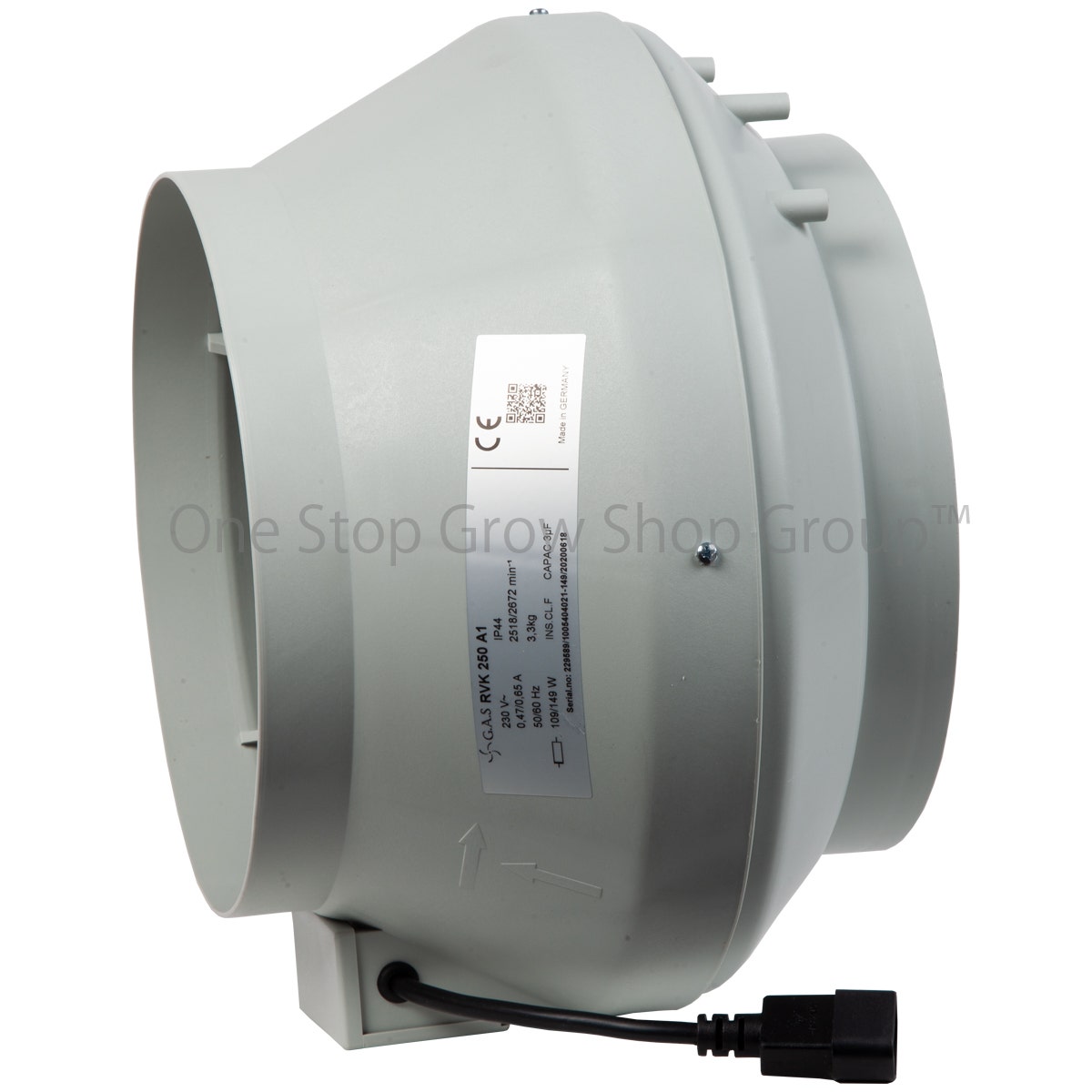

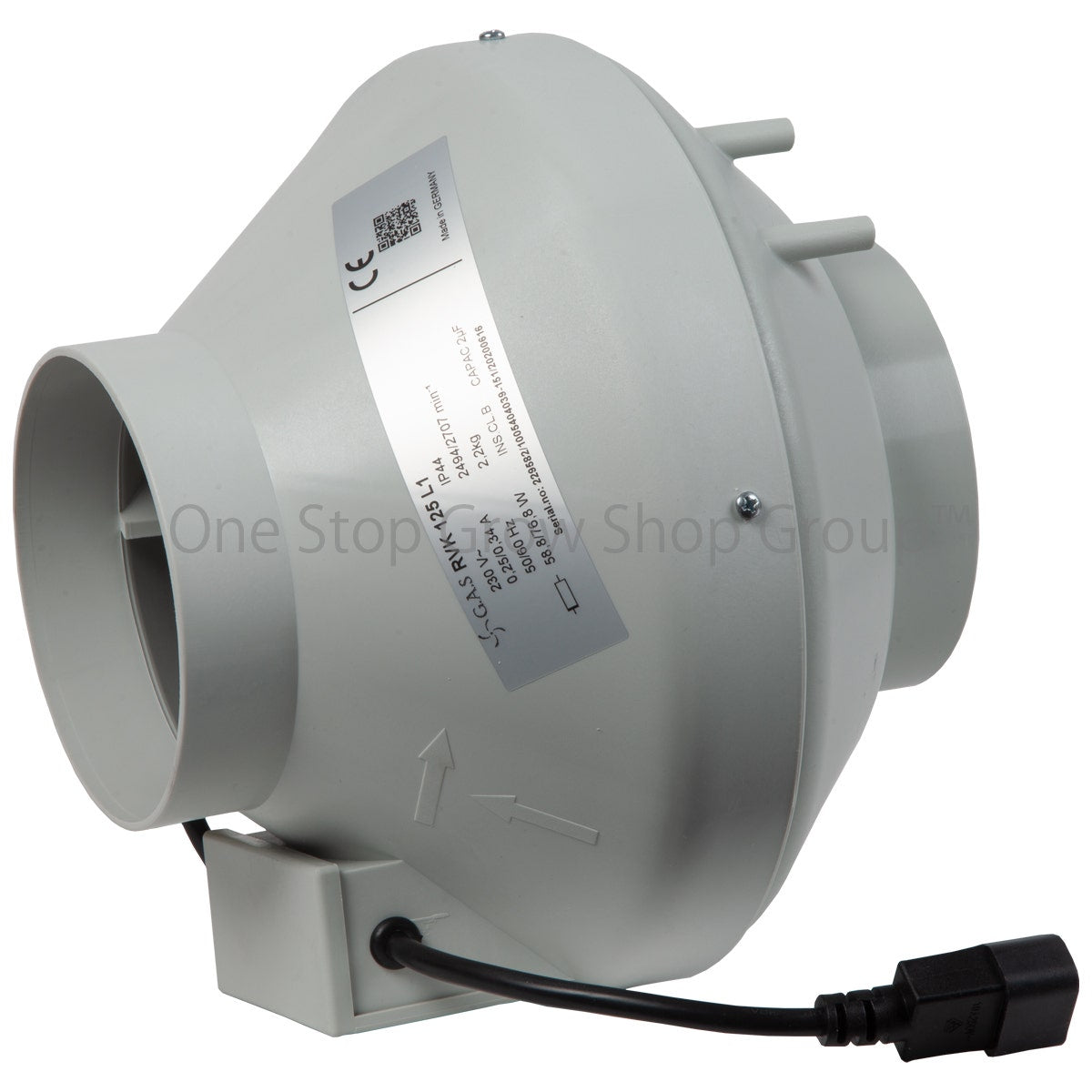

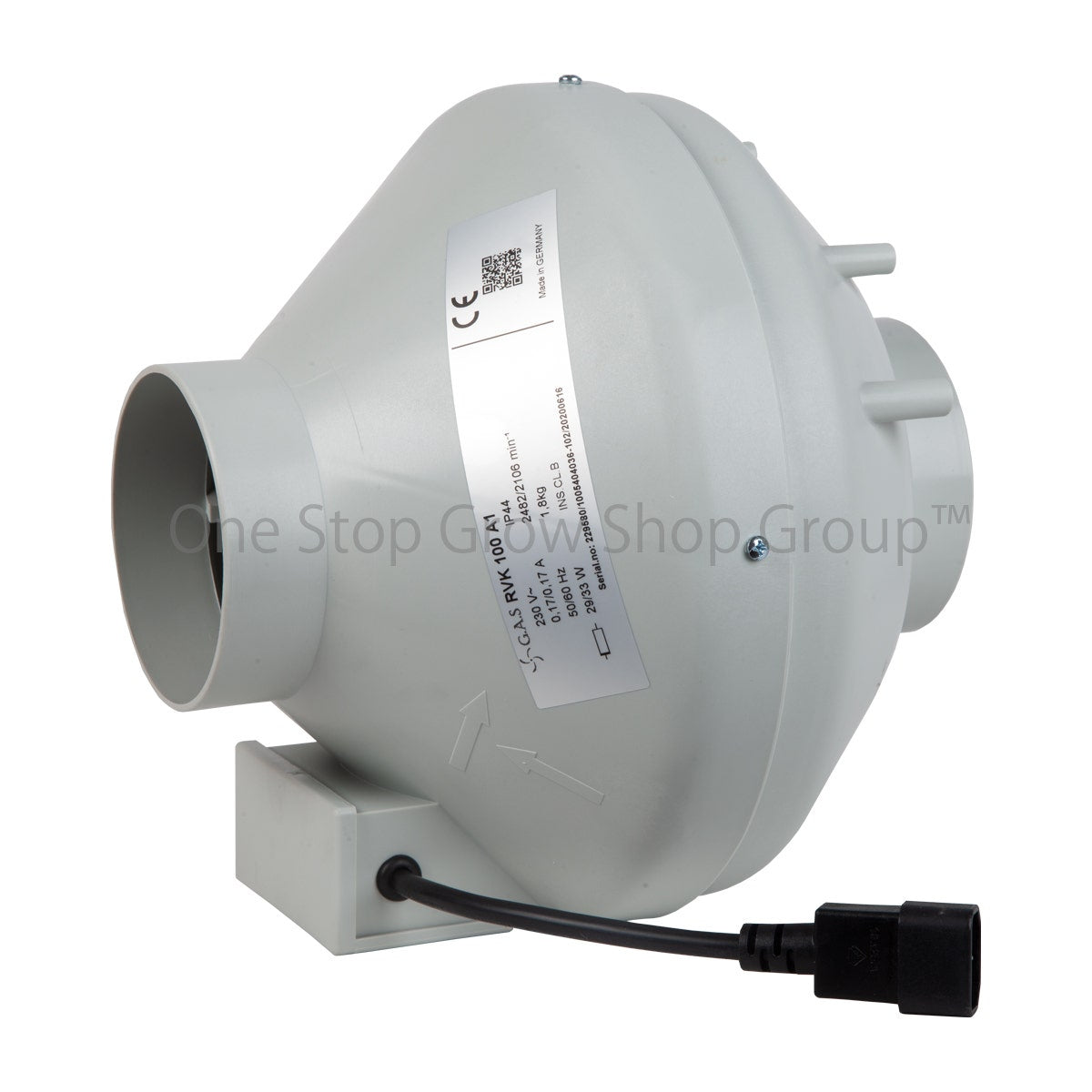

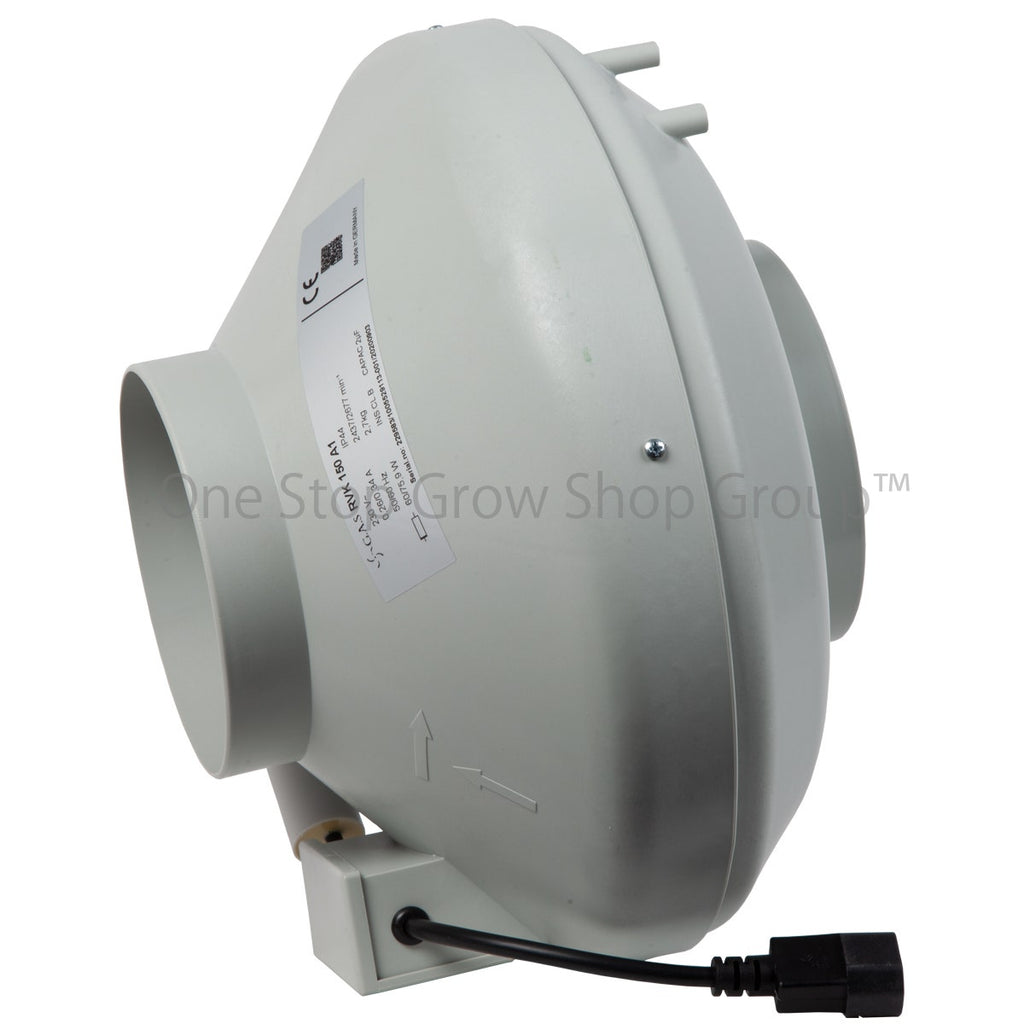

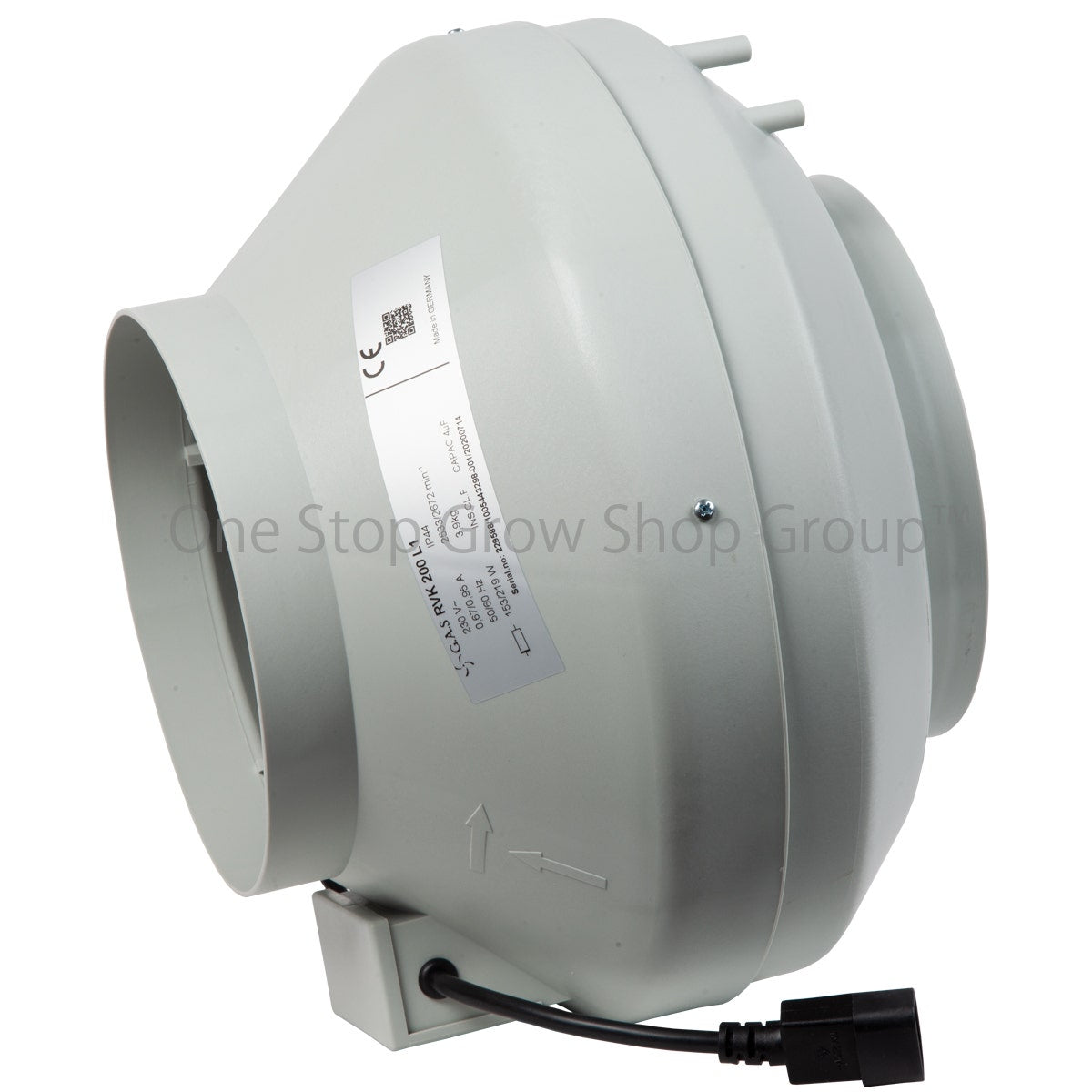

Systemair RVK duct fans are high-quality intake/outlet fans for extracting old, stale air from your grow-space or for supplying it with fresh air. The fans are housed in a lightweight yet robust fibreglass and plastic casing with external ports for easy connection to ducting, filters, airsocks or other accessories. The fan can be powered directly from the mains or via a fan-speed controller (not included) to regulate the fan-speed and air-flow. Systemair RVK fans are very well-made and reasonably quiet during use. A bracket is included for ease of mounting.

Using Systemair RVKs:

Systemair RVK fans can be used to draw air out of your grow-space via a carbon filter or just ducting. The fan can be mounted in the required location using the bracket provided. Many users prefer to use bungees to hang the fan from, which usefully reduce noise and vibration. The fan should be mounted so that the required air-flow direction matches the arrow mark on the casing. On the output side of the fan, slide your ducting over the outlet sleeve and secure it in place with a Duct Clip (not included). Repeat for the inlet side or a fast-clamp can be used to connect the fan directly on to a carbon filter. If a carbon filter is to be fitted it is important that the filter is rated at a similar air-flow as the fan. An electrical feed to the fan is required which can be directly from the mains or via a fan-speed controller. This should be performed by an electrically competent person. A downloadable wiring diagram can be found under the "Attachments" tab above this description. Be sure the diagram is followed closely.

Do not under any circumstances put your fingers into the spinning blades of a fan, especially an in-line type. Even a small fan has enough power to cause severe injury and loss of fingers. Just don't do it, no matter how tempted you are. For RVK fans, follow the wiring diagram on the case moulding, do not match up the wire colours to the wires inside as they follow the European wiring code. Keep ducting runs as short as possible as every metre of ducting reduces the flow-rate that the fan can achieve. The more ducting attached, the lower the air-flow. Bear in mind that a carbon filter will reduce the air-flow that your fan can achieve by about 25% just on it's own. When turning a corner with ducting try to create a swept bend rather than a sharp knee as this will reduce air-flow by the least amount and also help to keep wind-noise down. To further keep wind-noise down to a minimum, stretch flexi-ducting out as much as possible or use acoustic ducting.

4-Inch
Rated air-flow: 184 m3/hour
Noise level: 34.5 dB
Power consumption: 29.1 Watts
Current draw: 0.171 Amps
Weight: 1.8 Kg

5-Inch
Rated air-flow: 220 m3/hour
Noise level: 37.5 dB
Power consumption: 29.2 Watts
Current draw: 0.172 Amps
Weight: 1.8Kg

5-Inch L
Rated air-flow: 323 m3/hour
Noise level: 43 dB
Power consumption: 58.8 Watts
Current draw: 0.257 Amps
Weight: 2.2 Kg

6-Inch
Rated air-flow: 428 m3/hour
Noise level: 40.6 dB
Power consumption: 59.6 Watts
Current draw: 0.262 Amps
Weight: 2.6 Kg

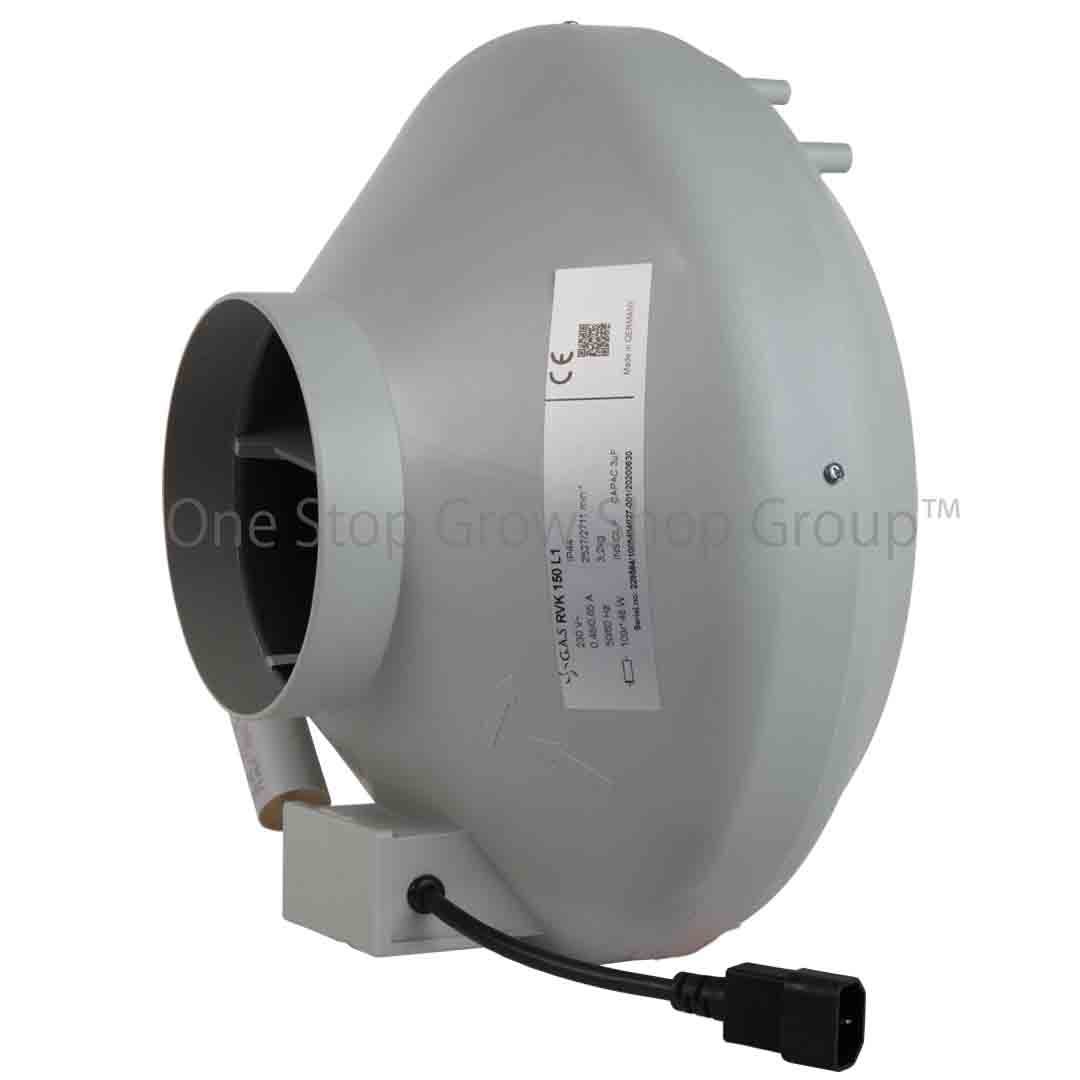

6-Inch L
Rated air-flow: 720 m3/hour
Noise level: 44.8 dB
Power consumption: 109 Watts
Current draw: 0.48 Amps
Weight: 3.1 Kg

8-Inch
Rated air-flow: 796 m3/hour
Noise level: 42 dB
Power consumption: 104 Watts
Current draw: 0.46 Amps
Weight: 3.2 Kg

8-Inch L
Rated air-flow: 1008 m3/hour
Noise level: 44.9 dB
Power consumption: 153 Watts
Current draw: 0.625 Amps
Weight: 3.8 Kg

10-Inch
Rated air-flow: 860 m3/hour
Noise level: 39.7 dB
Power consumption: 109 Watts
Current draw: 0.476 Amps
Weight: 3.7 Kg

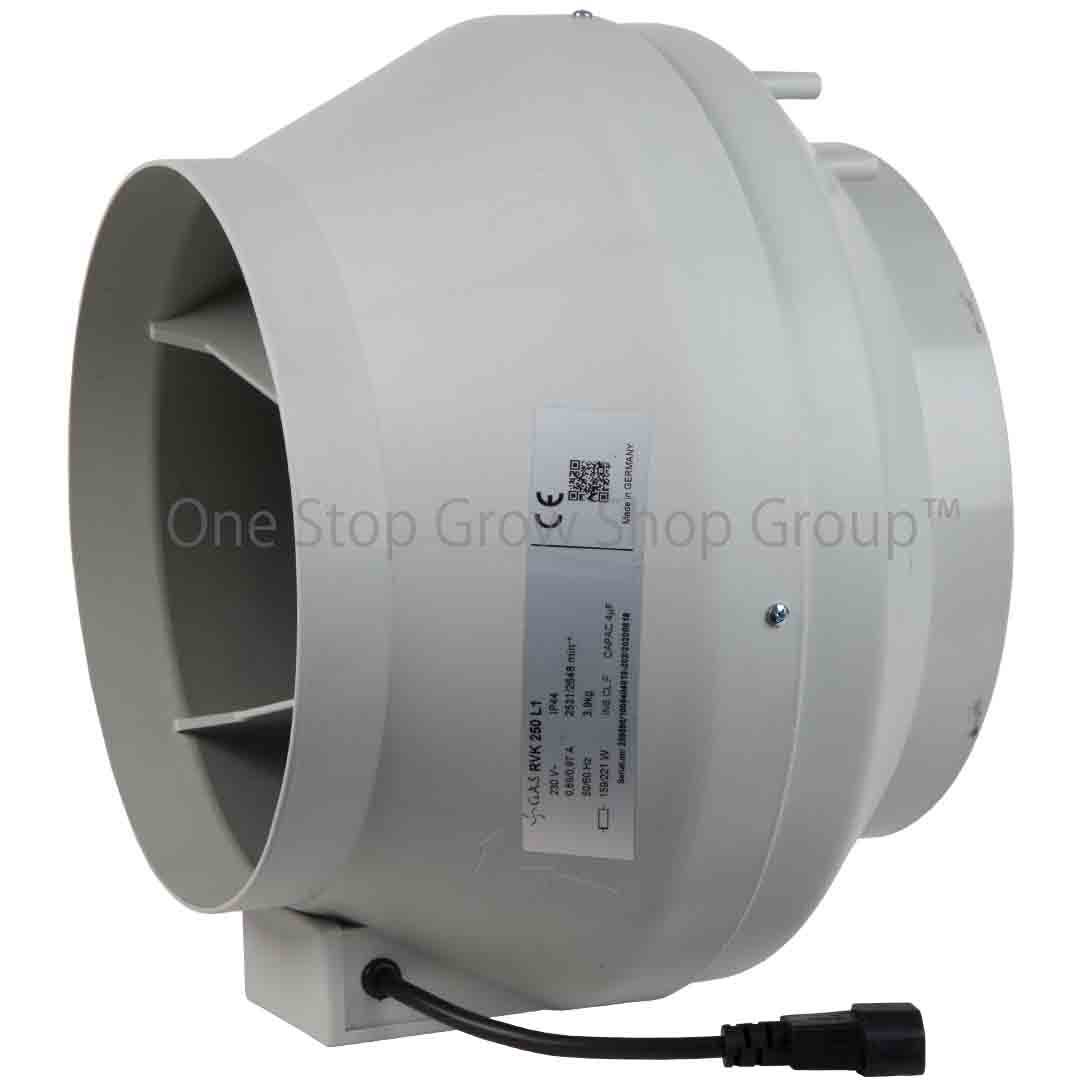

10-Inch L
Rated air-flow: 1080 m3/hour
Noise level: 41.9 dB
Power consumption: 159 Watts
Current draw: 0.691 Amps
Weight: 3.8 Kg

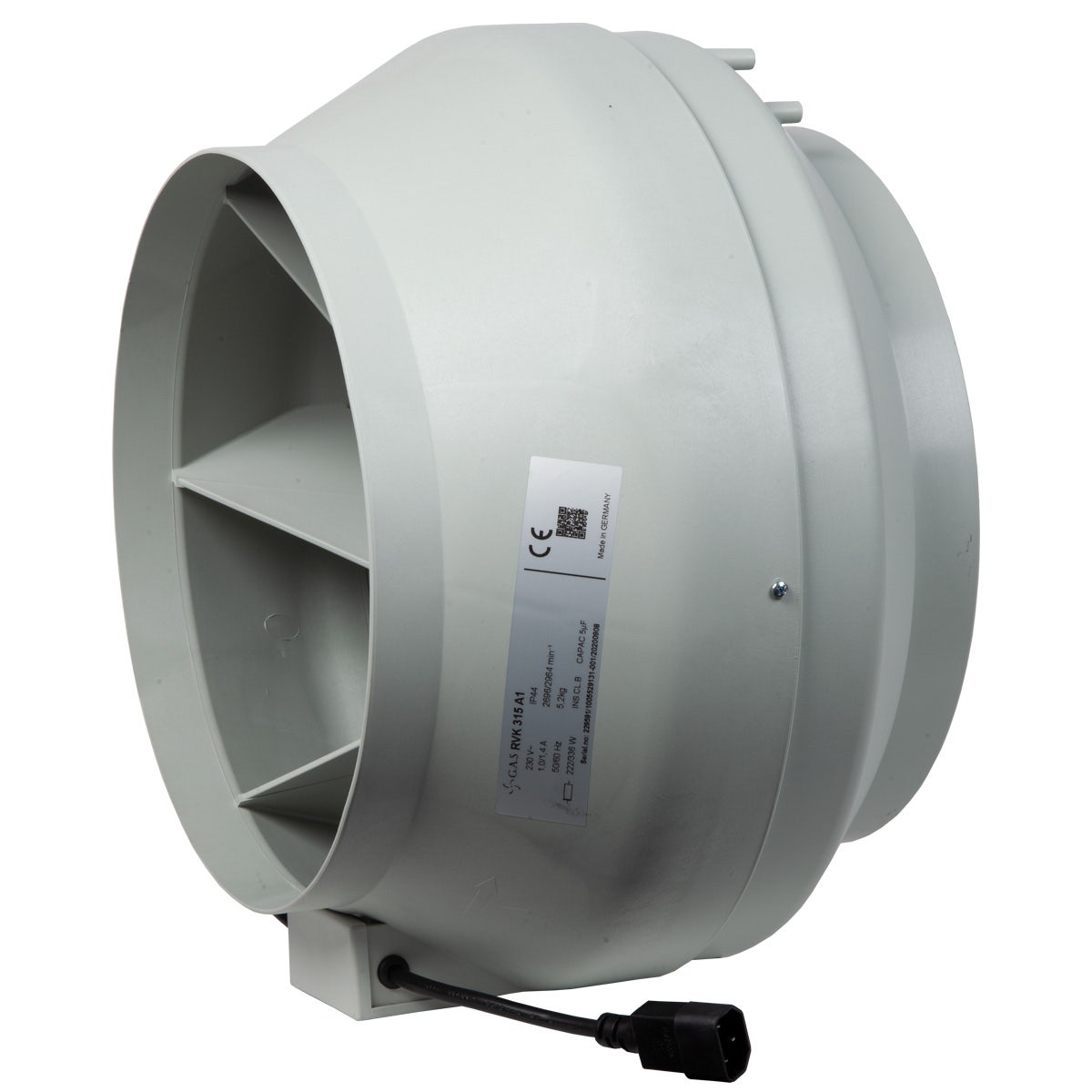

12-Inch
Rated air-flow: 1360 m3/hour
Power consumption: 176 Watts
Current draw: 0.94 Amps
Weight: 5.8 Kg
