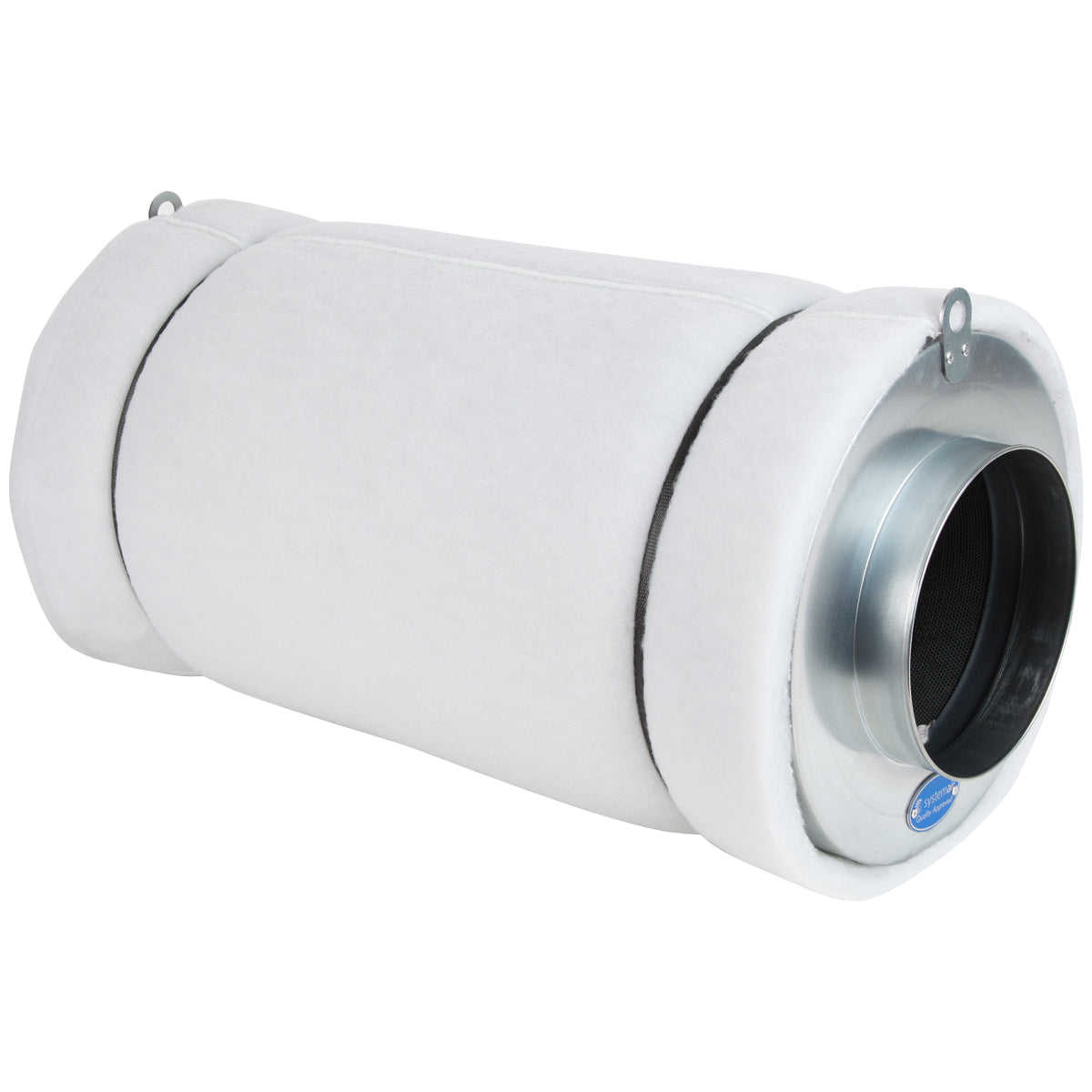

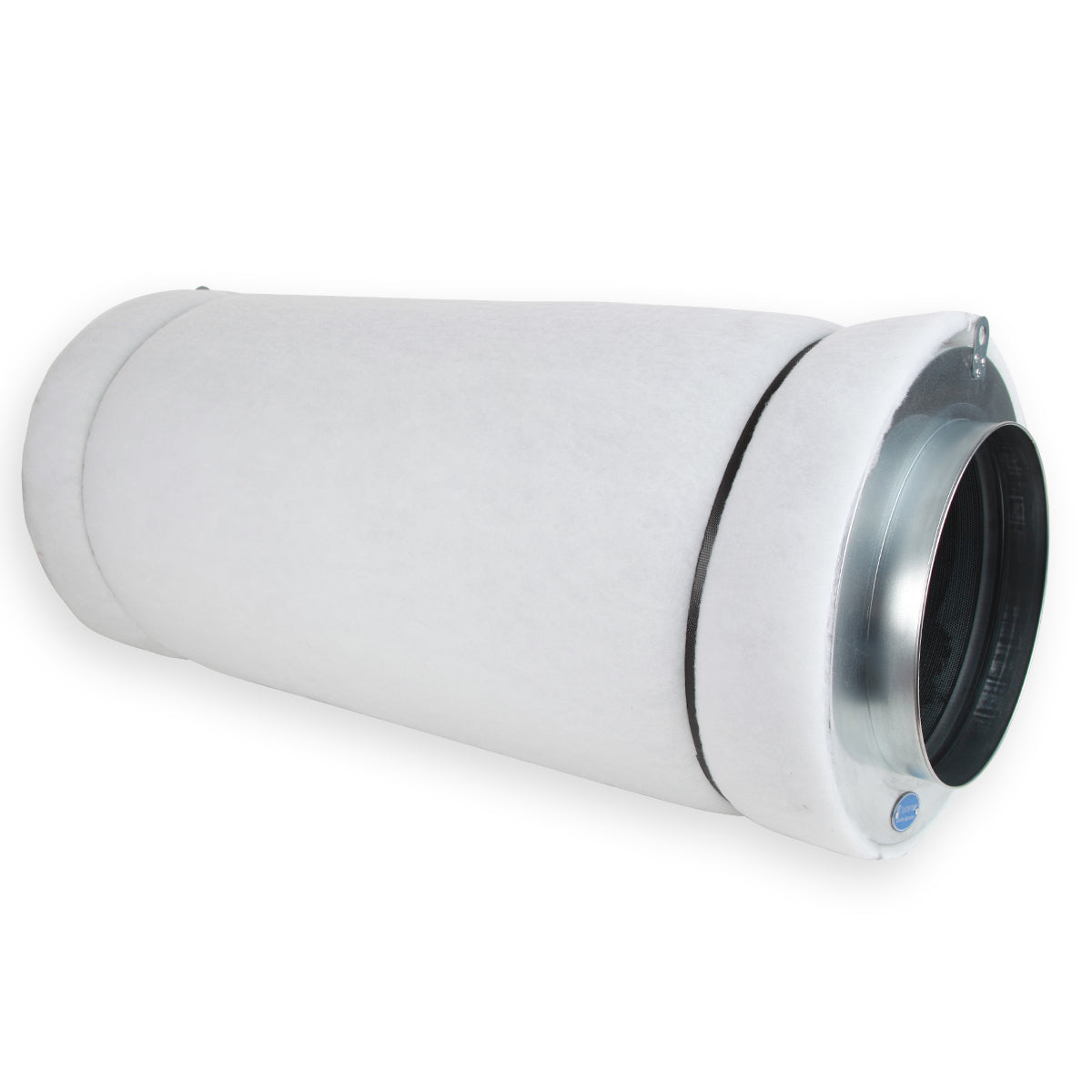

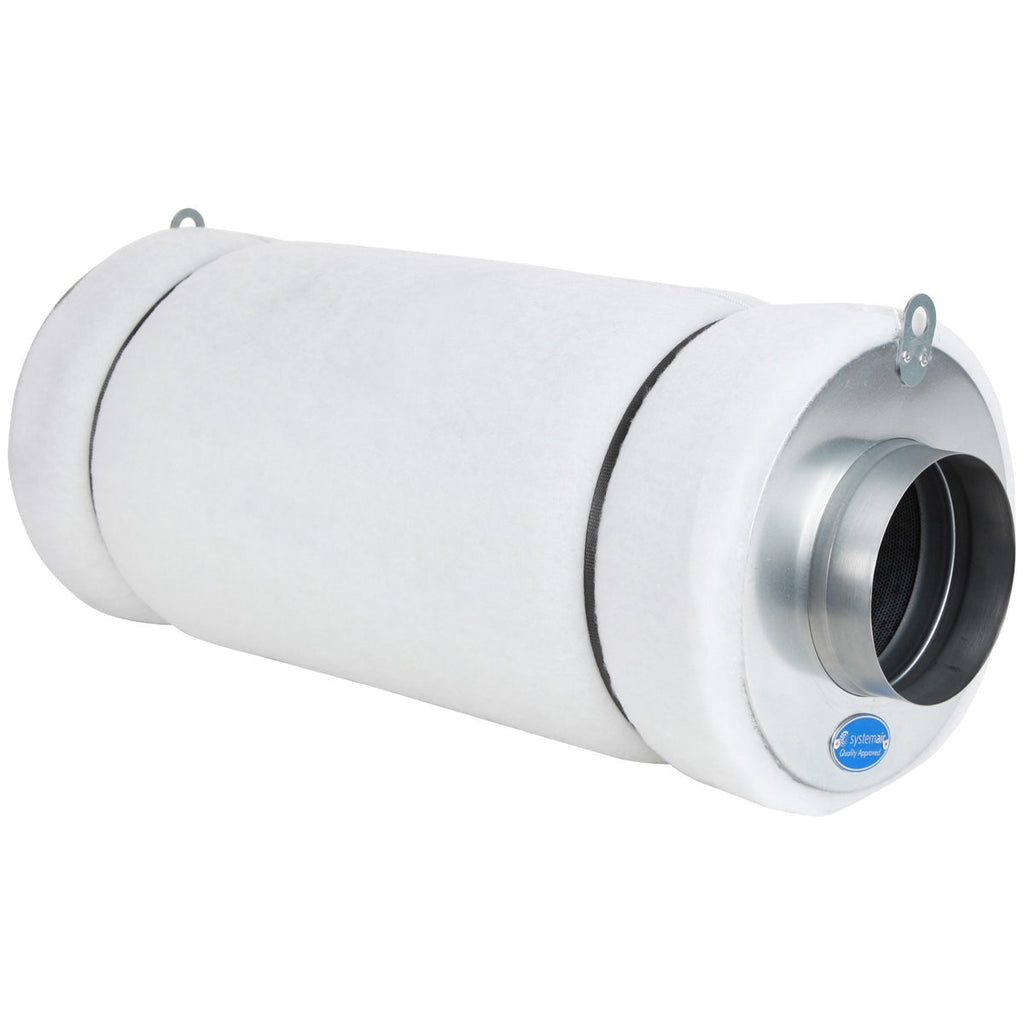

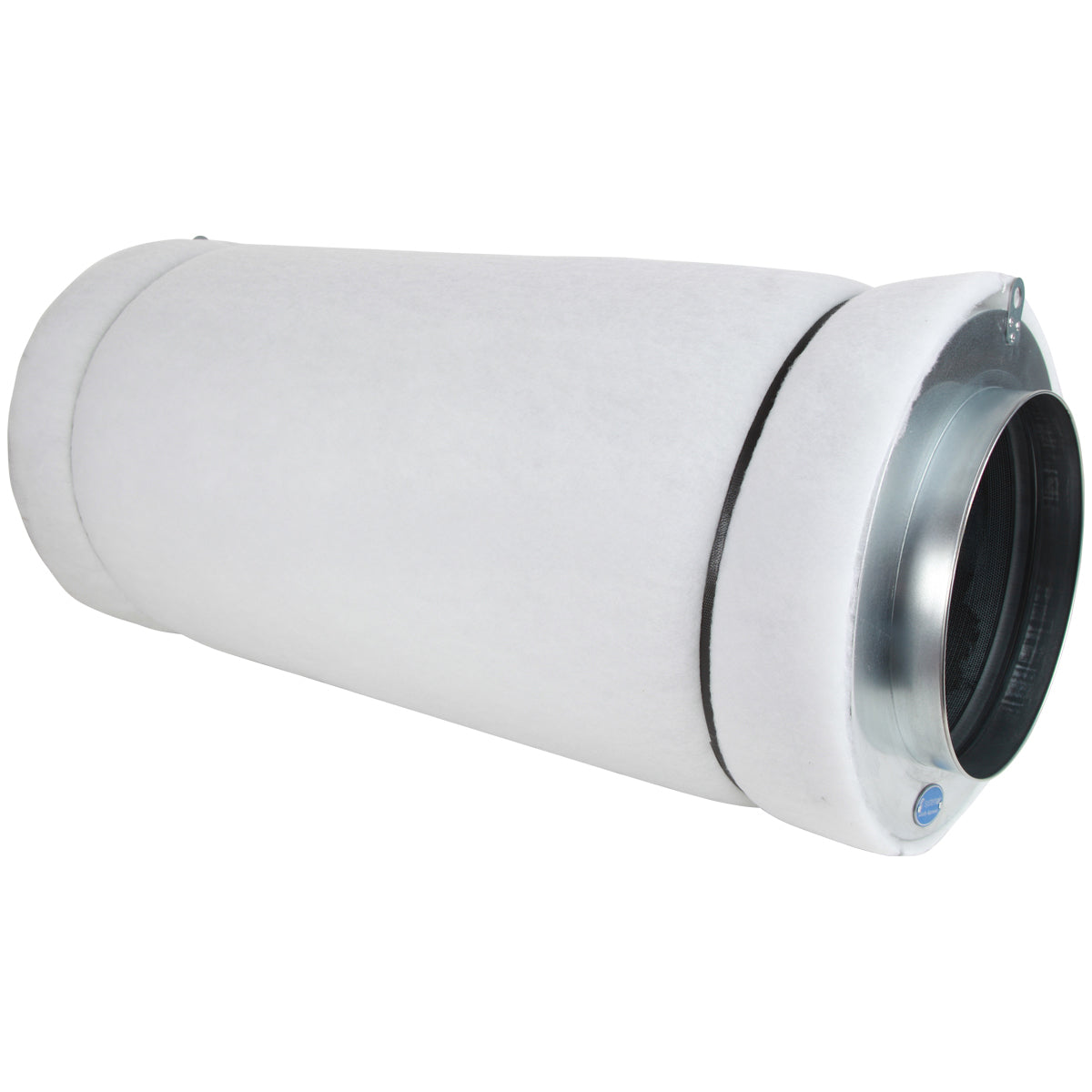

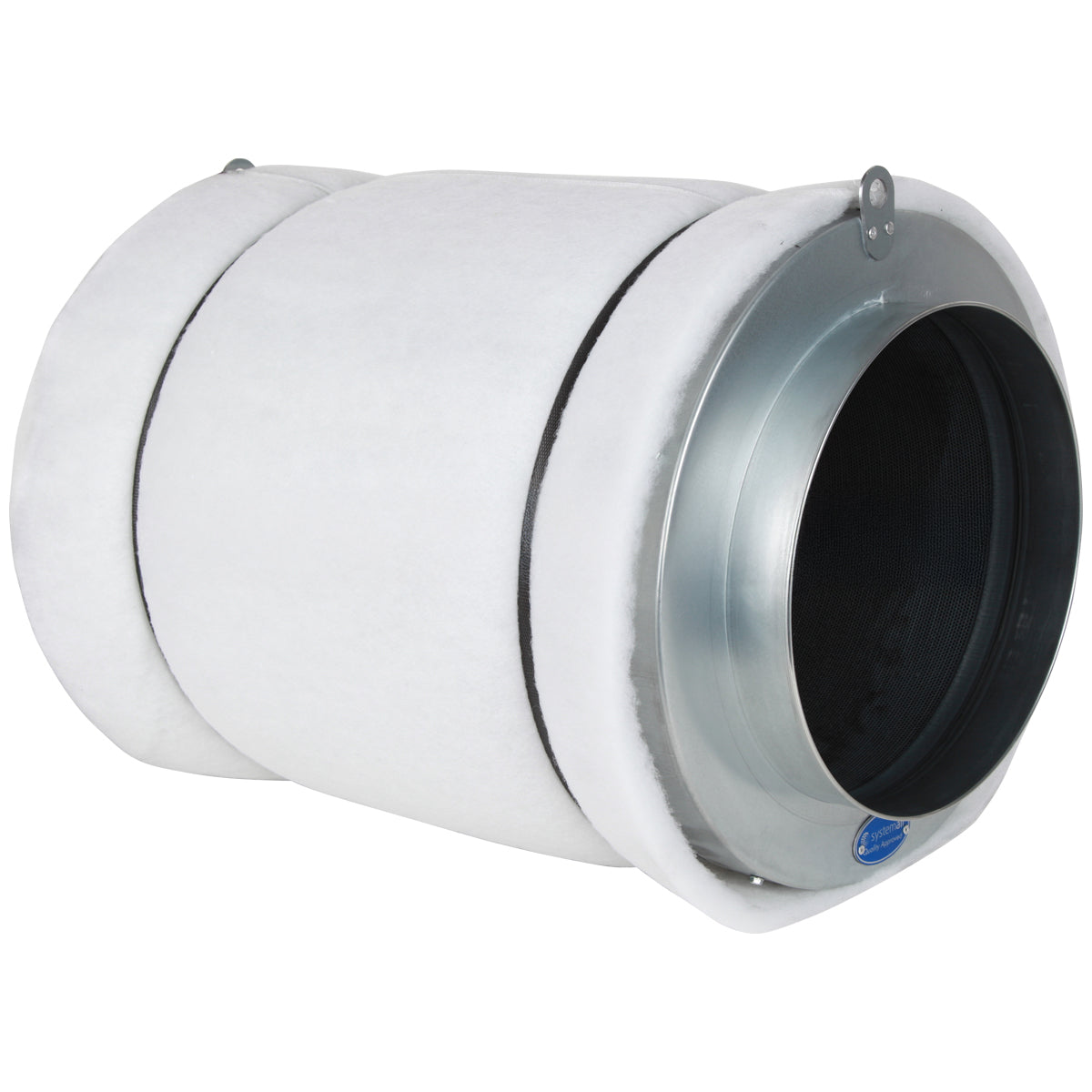

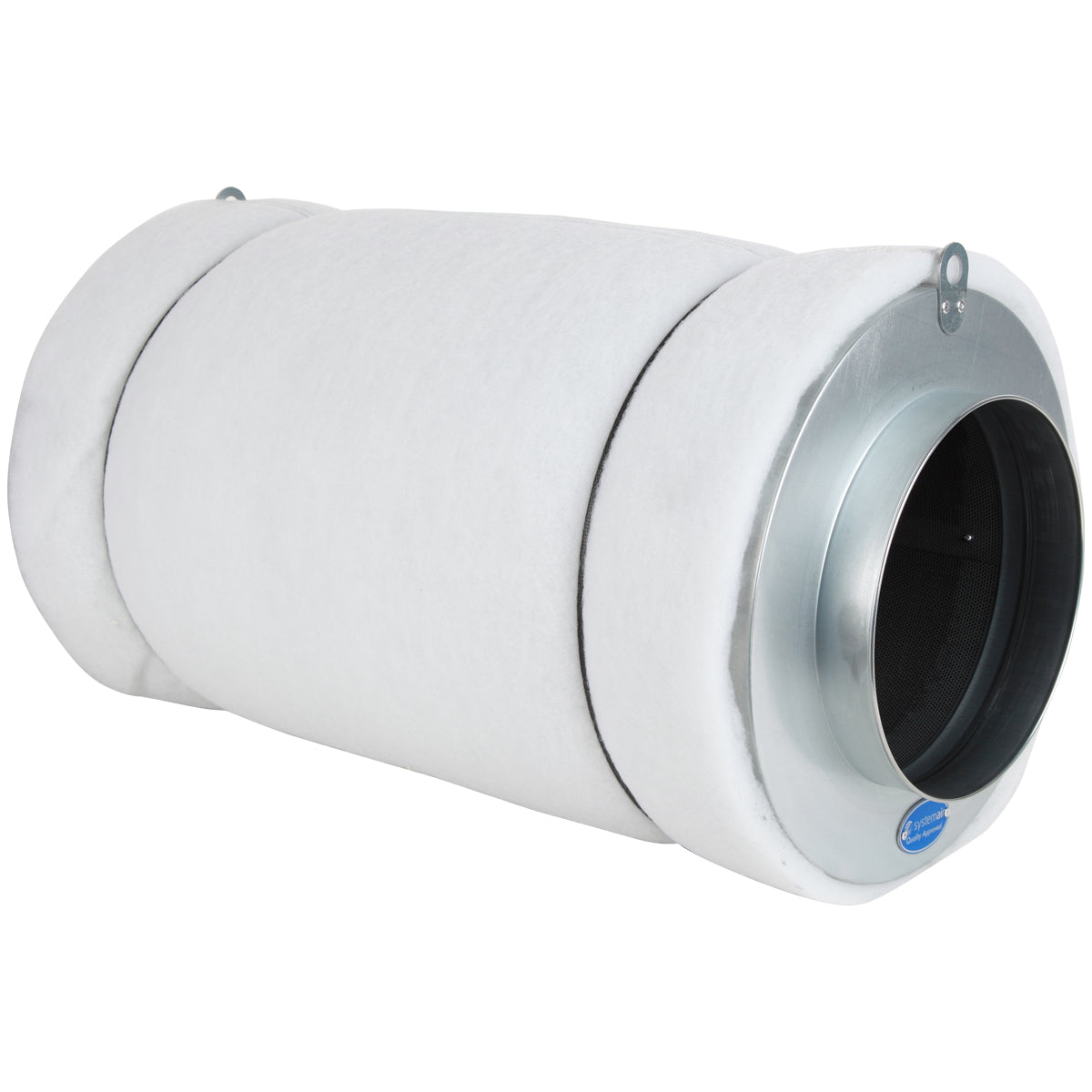

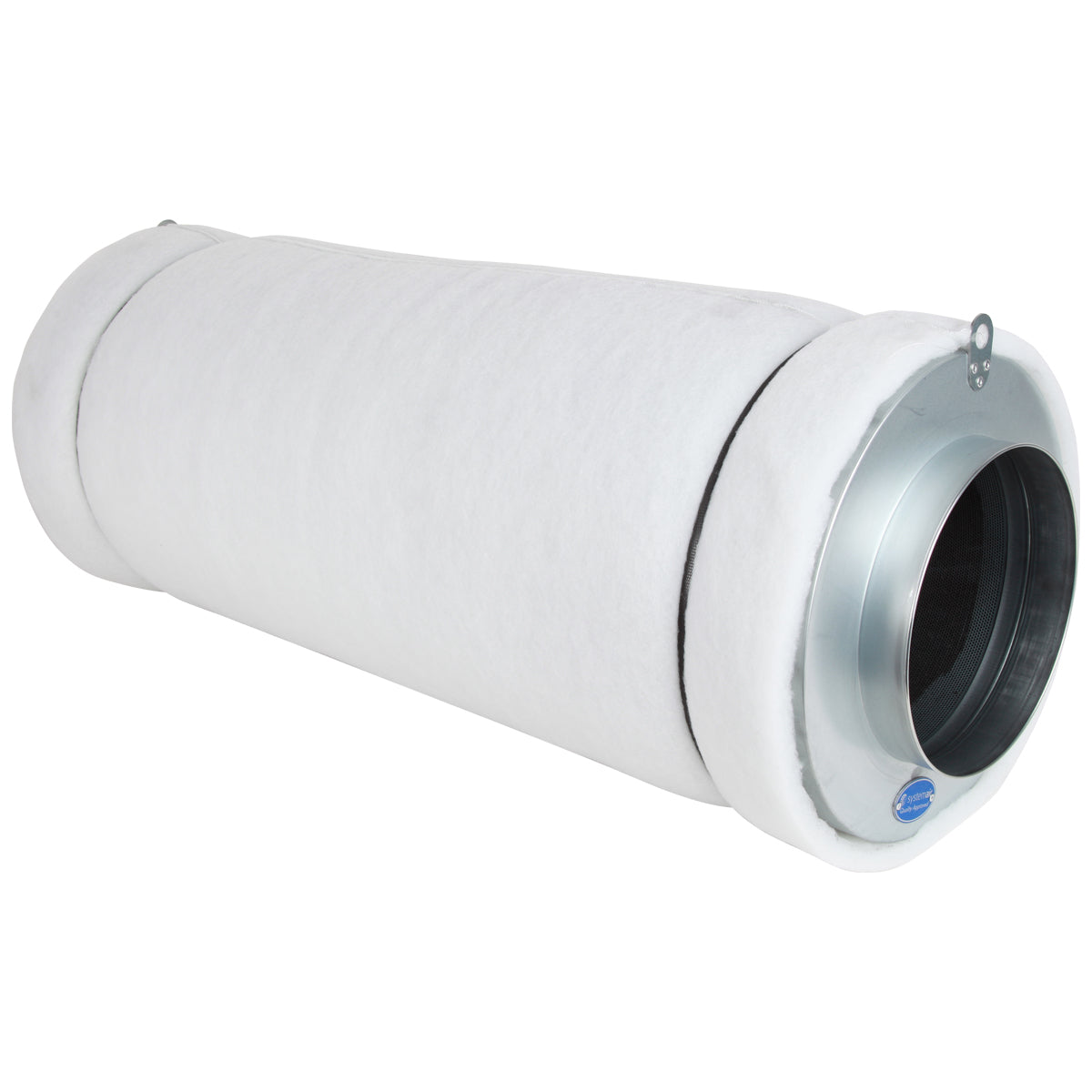

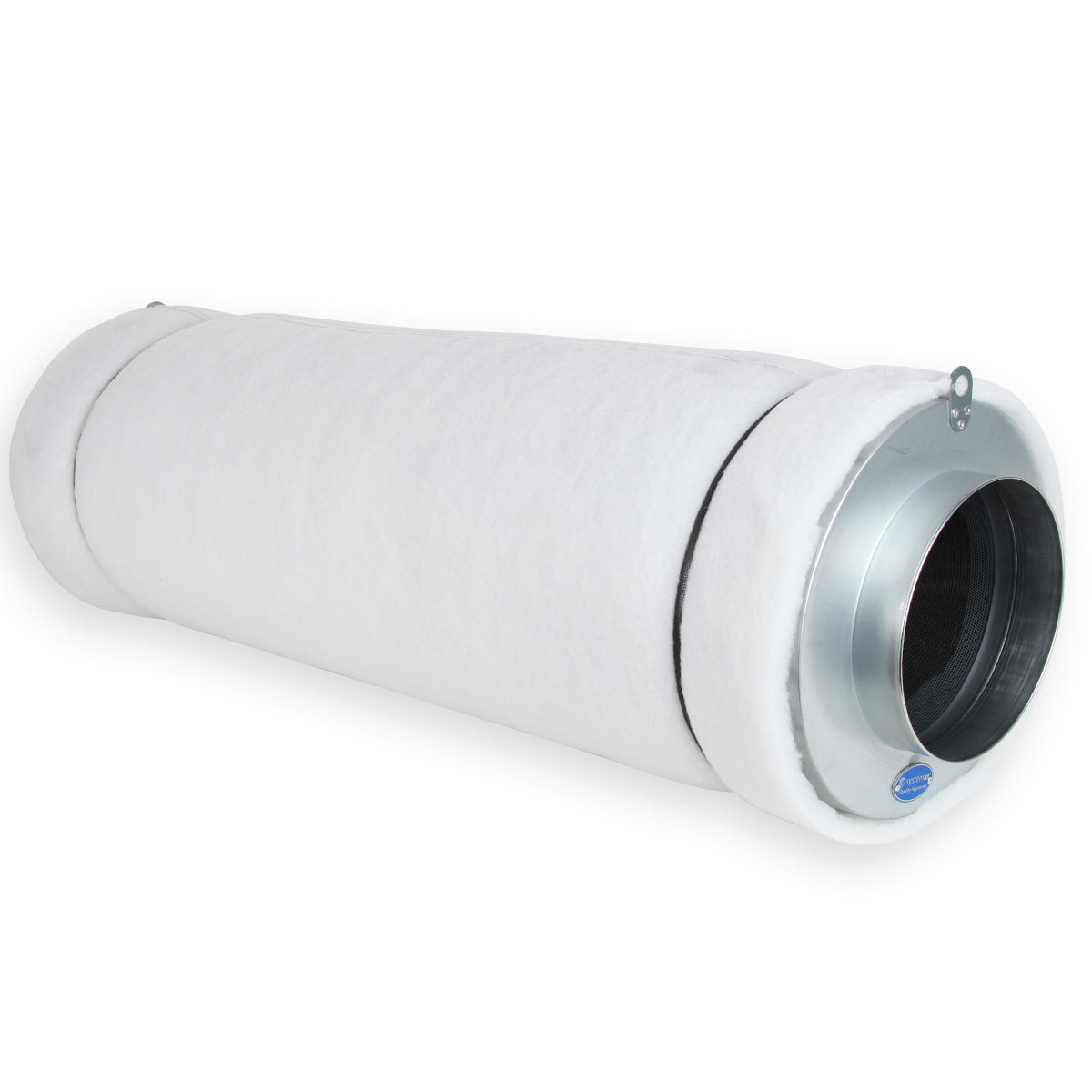

CarboAir - The New Standard in Carbon Filters
CarboAir Carbon Filters are also available in 50mm, 65mm, 75mm and 100mm bed depths
The 60mm CarboAir Filters set the bar for extraction, they are built to the exacting standards of Systemair - makers of the ever dependable RVK fans and industry leading Revolution fans. CarboAir utilises coarser, incredibly high quality carbon in thicker beds than competing carbon filters. This gives you optimal contact time to eradicate smells whilst also maintaining unbeatable airflow from your fan.
Airflow Rates
6" 150mm/660mm CarboAir - 1350 m3/hr
8" 200mm/660mm CarboAir - 1700 m3/hr
8" 200mm/1000mm CarboAir - 2250 m3/hr
10" 250mm/660mm CarboAir - 2000 m3/hr
10" 250mm/1000mm CarboAir - 3100 m3/hr
12" 315mm/660mm CarboAir - 2450 m3/hr
12" 315mm/1000mm CarboAir - 3600 m3/hr
12" 315mm/1200mm CarboAir - 4250 m3/hr
To see our full CarboAir Carbon Filters range, click here
About
- Kills grow room smells stone dead without stifling your fans power
- Hand built to an incredibly high standard - quality approved by Systemair
- Pairs perfectly with Revolution fans
- Machine washable pre-filter sleeve included and pre-fitted
- Maintain high performance levels at the rated airflows for at least 18 months
How To Use
Using the CarboAir Filter
Carbon filters must be matched to the fan that they are being used with in terms of the diameter of the venting and the air flow rate. If the air-flow rate of the fan is too high for the filter then the air will flow through it too quickly to be cleaned properly.
Before use, the plastic wrap should be removed from around the outside of the drum CarboAir have already pre-fitted your pre-filter.
Your CarboAir Filter needs to mounted inside or as close as possible to your grow-space and connected to your extractor fan by means of ducting and Duct Clips or by a fast clamp which joins the filter and the fan directly together. However they’re fitted together, it’s essential that all joins are airtight for the fan and filter system to work effectively. The outside of the filter should not be covered or obstructed as this will reduce filter's efficiency. Smaller filters and fans are commonly fitted into grow-tents and grow-room by hanging them from hanging bars or ceiling fittings. In this way they do not reduce your amount of floor-space and they remove the warmest air which tends rise. Larger filters may be too large and cumbersome for hanging and can be simply sat on the floor. Once the filter and your fan have been located in your grow-space, ducting can be run from the outlet side of your extractor fan to outside of the grow-space.
CarboAir Filters are designed to be fitted to the intake side of your extractor fan and should never be fitted to the outlet side. In other words air must be sucked through them and never blown out through them. Blowing air through them will make them ineffective and may even damage them internally. The dust-filter around the outside should be removed and washed when it gets dirty in order to maintain air flow.
Moisture degrades the performance of carbon filters. High humidity makes them ineffective at eliminating smells and reduces the expected life-span by a significant amount. Try to keep humidity at a reasonable level (between 40% and 60%) and both your carbon filter and your plants will benefit.
