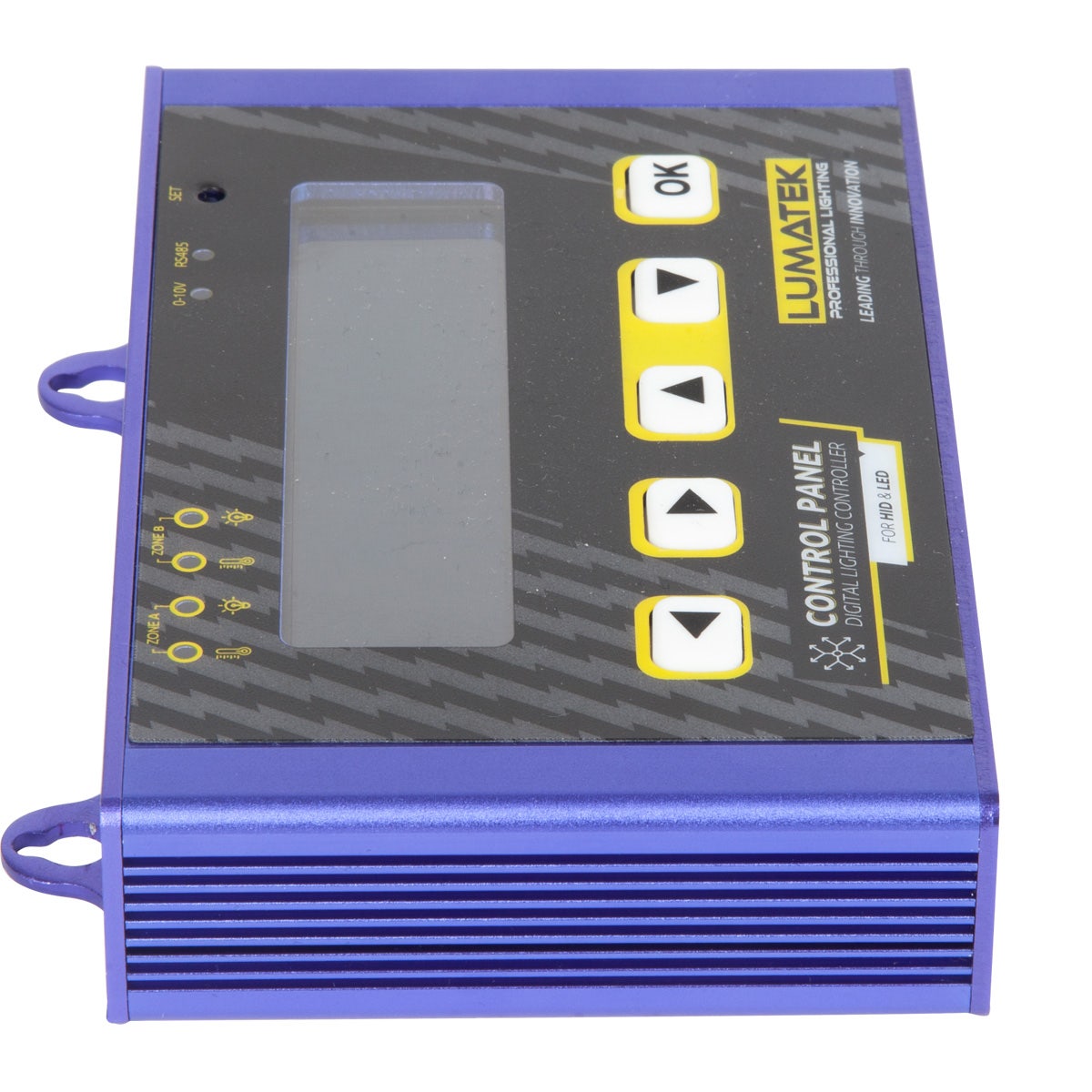

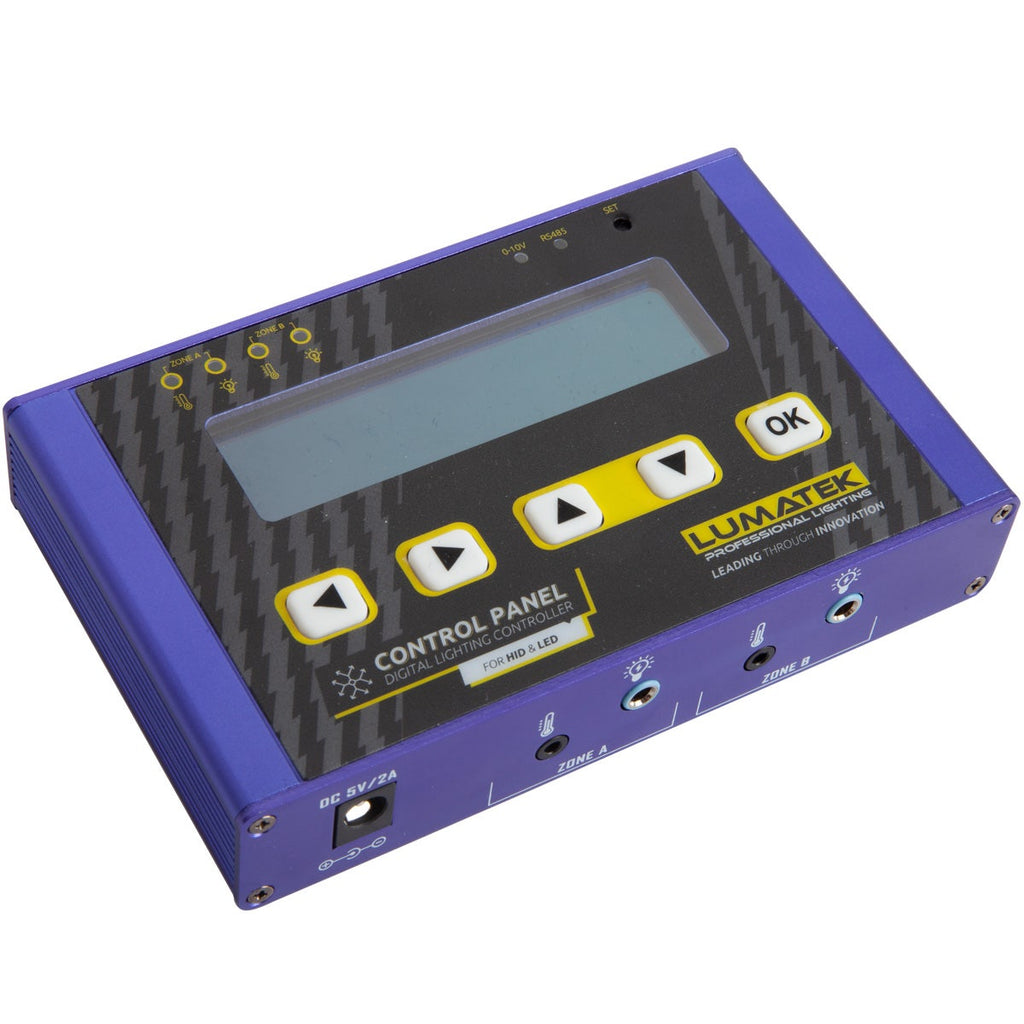

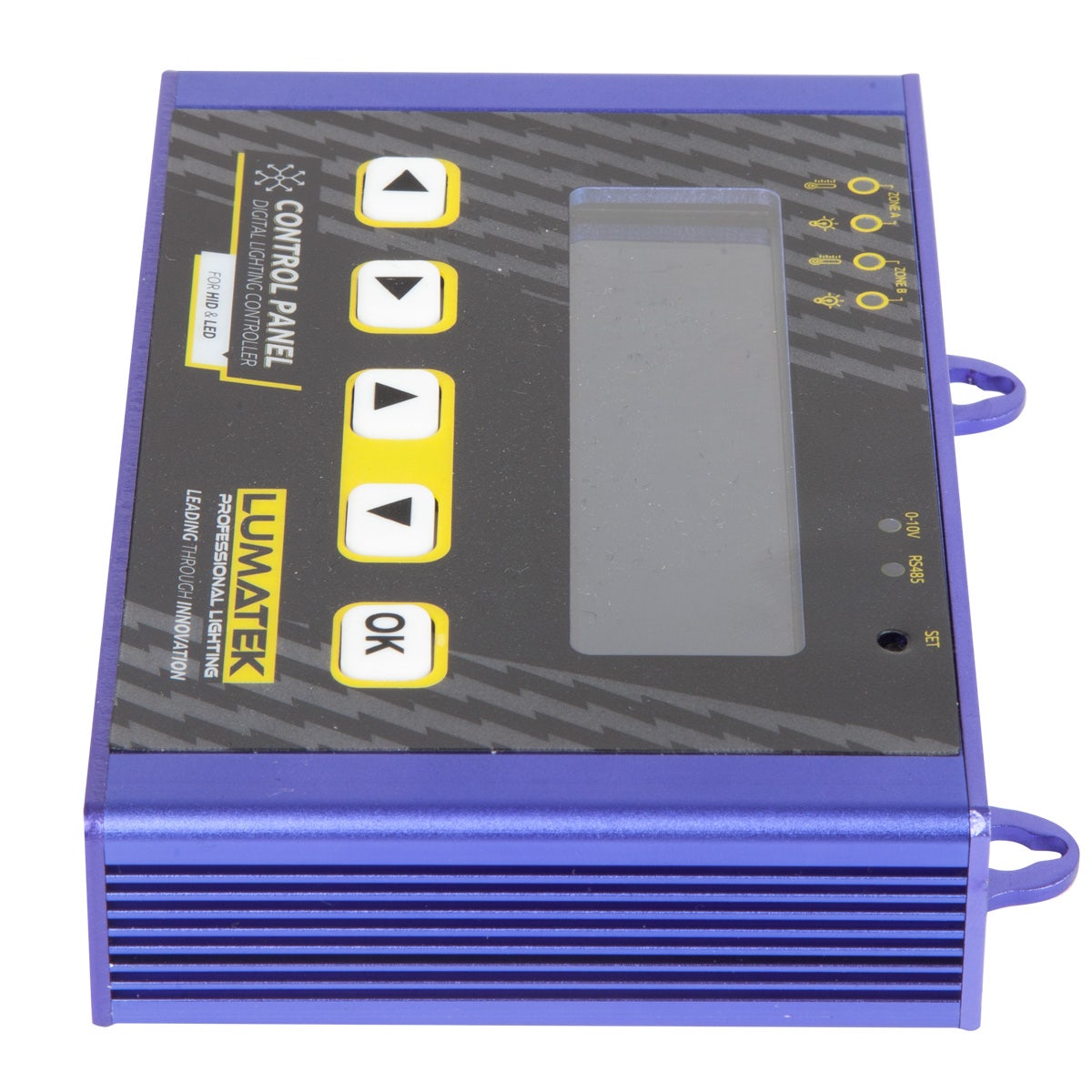

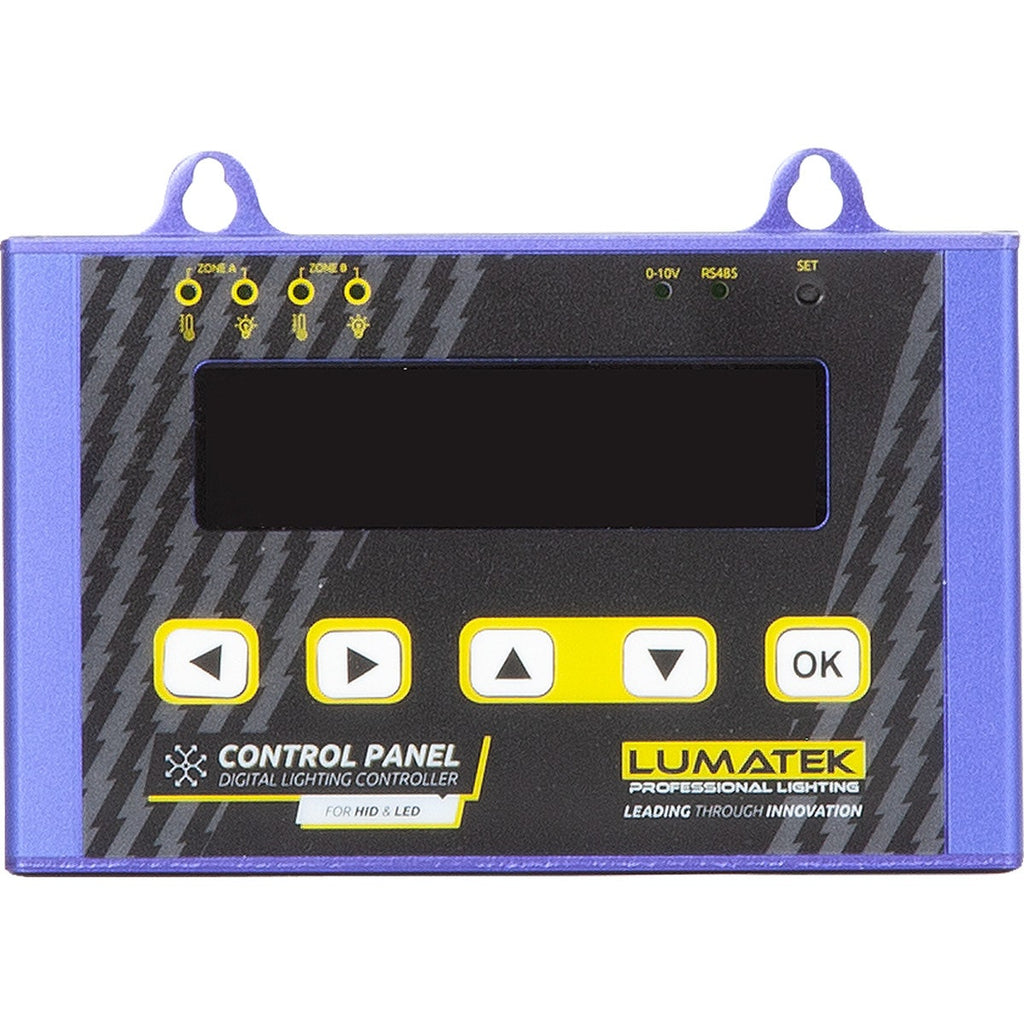

Lumatek Control Panel Plus
Gets the Best Out of Lumatek LEDs!
The Control Panel Plus can be connected up to your Lumatek lighting equipment, allowing you to control lighting patterns for multiple fixtures, drivers and ballasts from a central point , while opening up an array of features.
- Sets on and off times for multiple LEDs from a central point
- Works with HID, LED and CDM lighting
- Dims lighting with pinpoint precision in 1% increments
- Comes with two channels that can each connect up to 200 lights (or 50 LED drivers)!
- Sunrise / sunset mode to mimic natural light patterns
- Auto dimming to keep temperatures in range at all times
- Auto shut-off if temps get to dangerous levels, for peace of mind

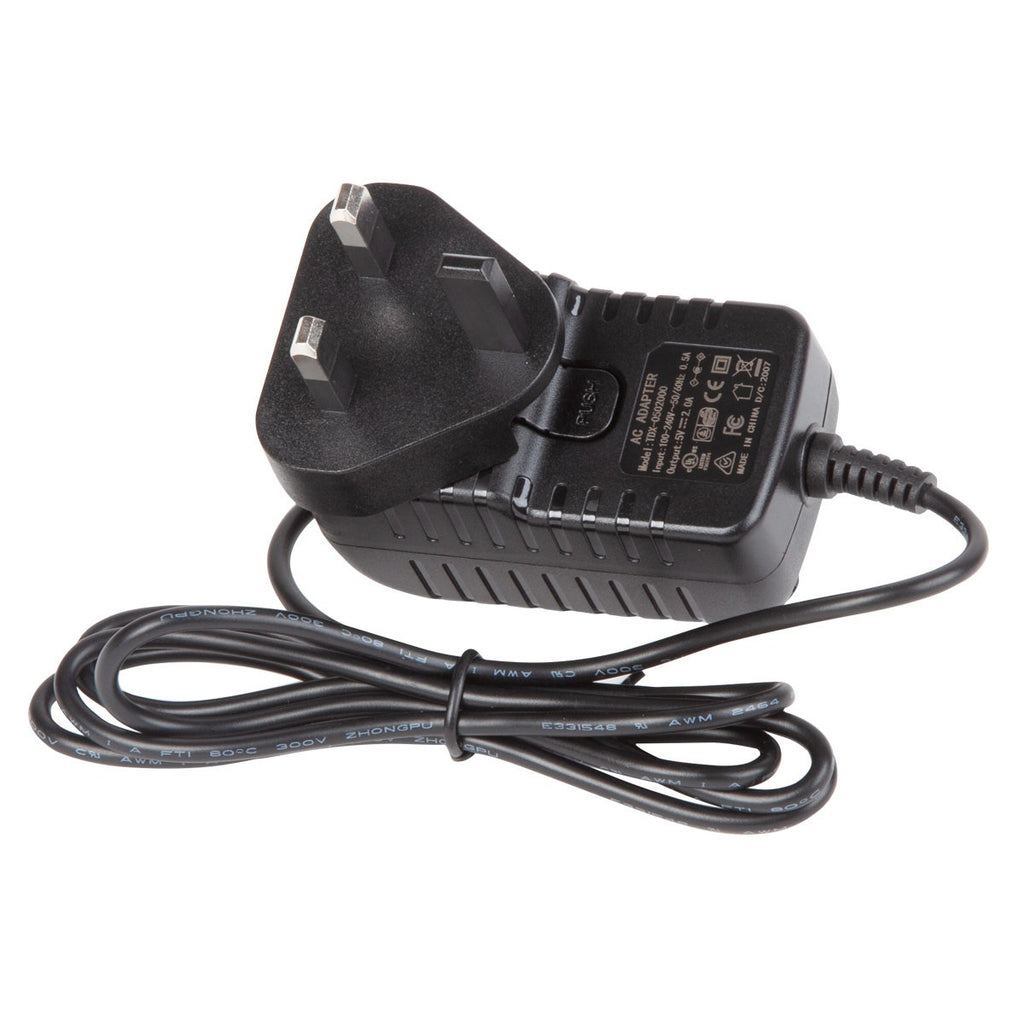

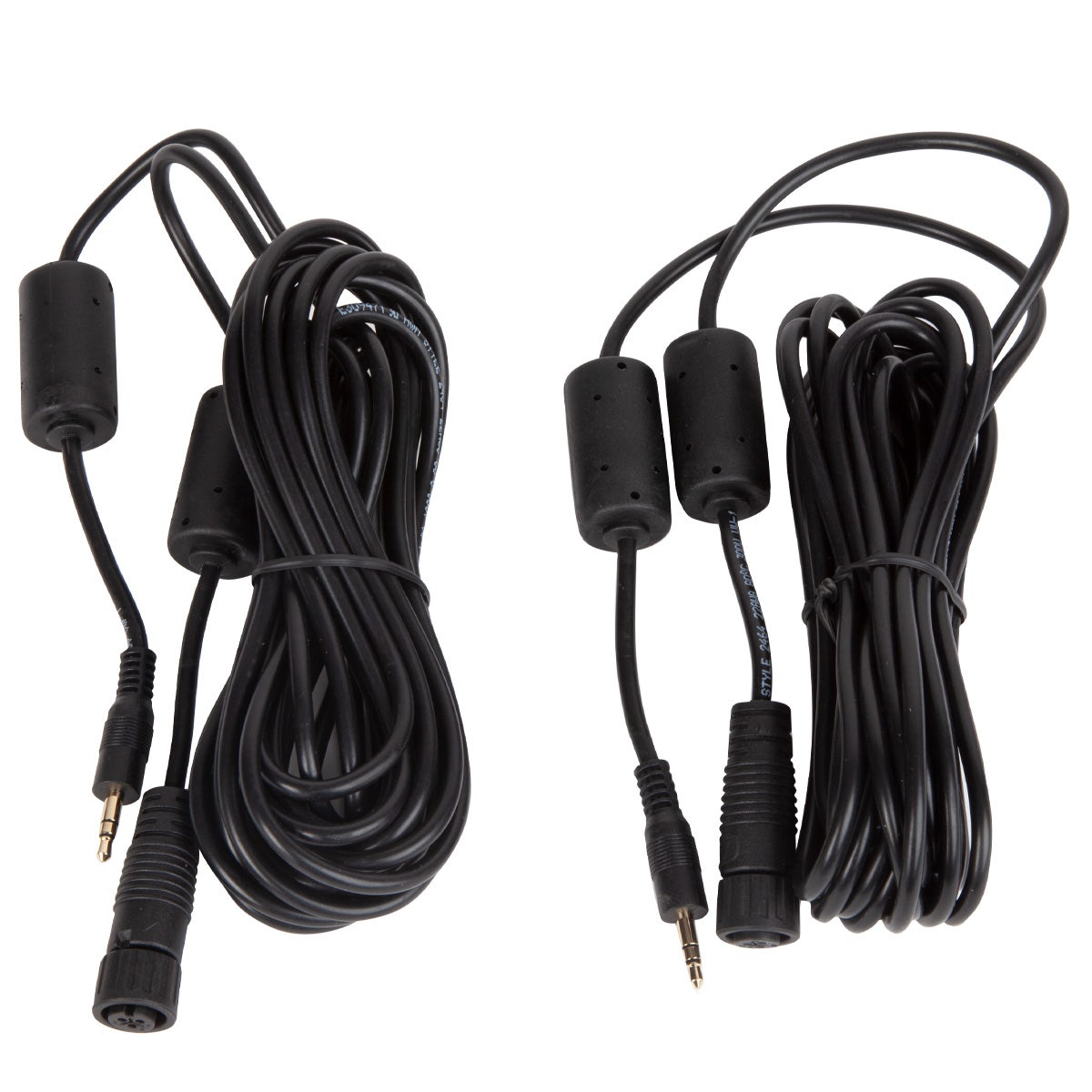

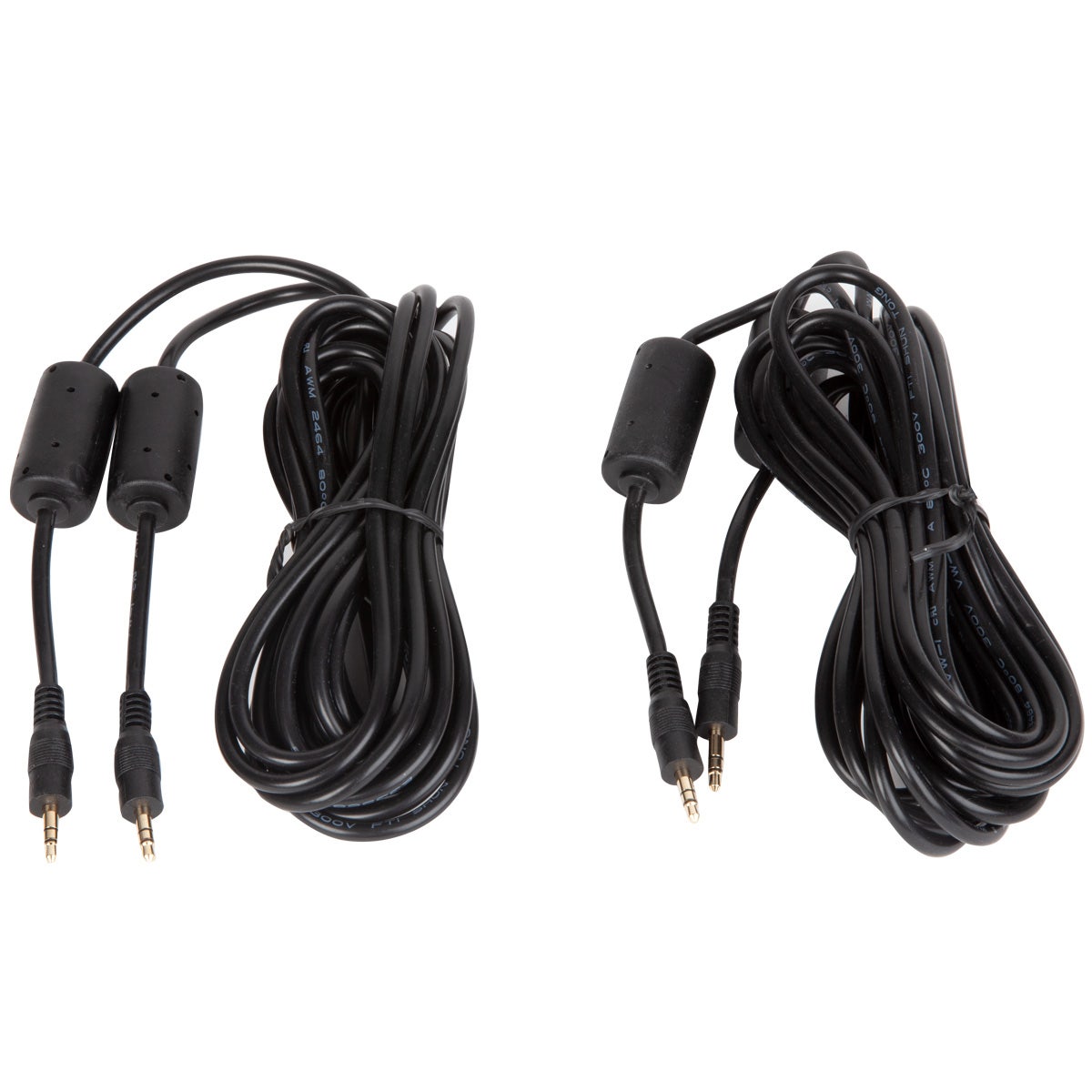

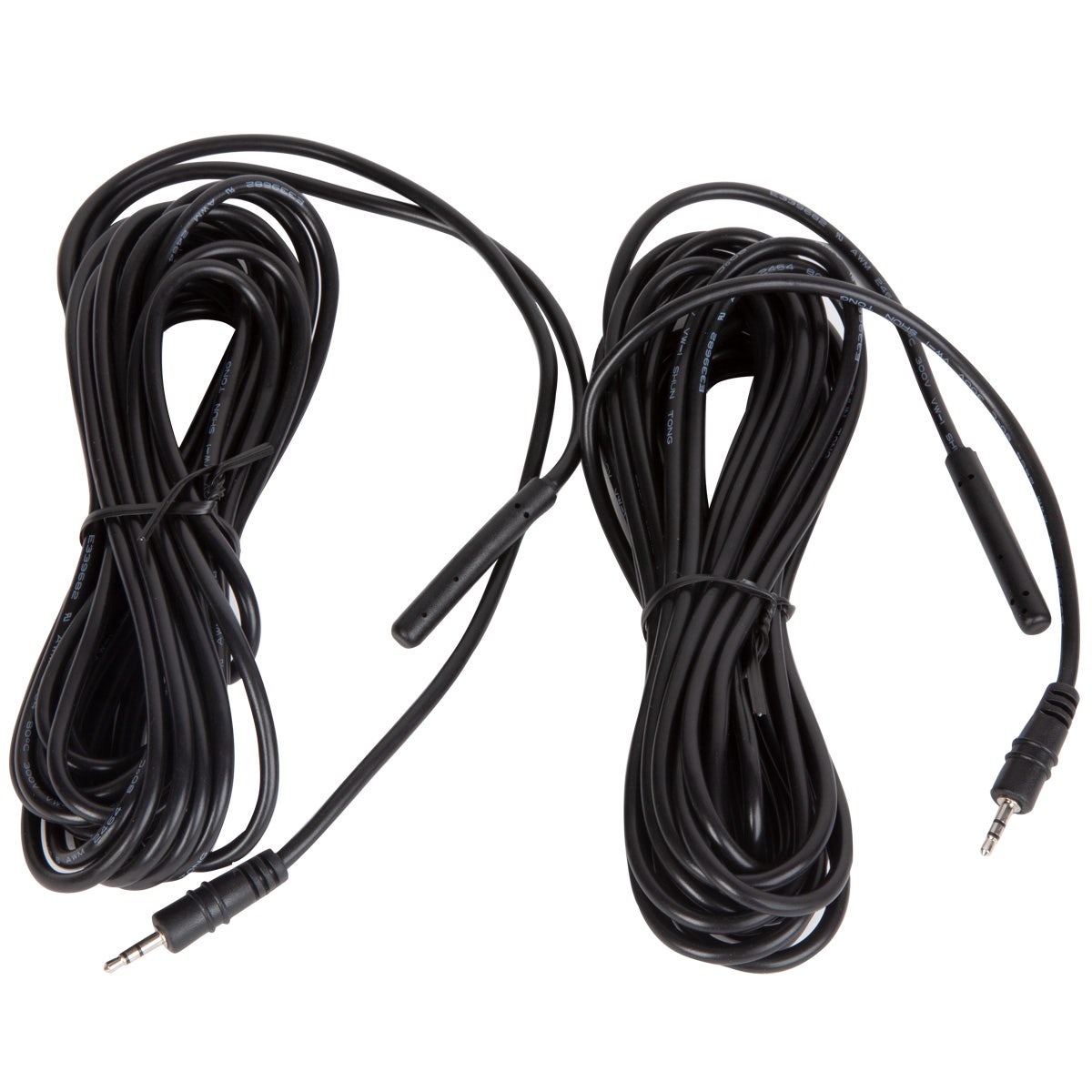

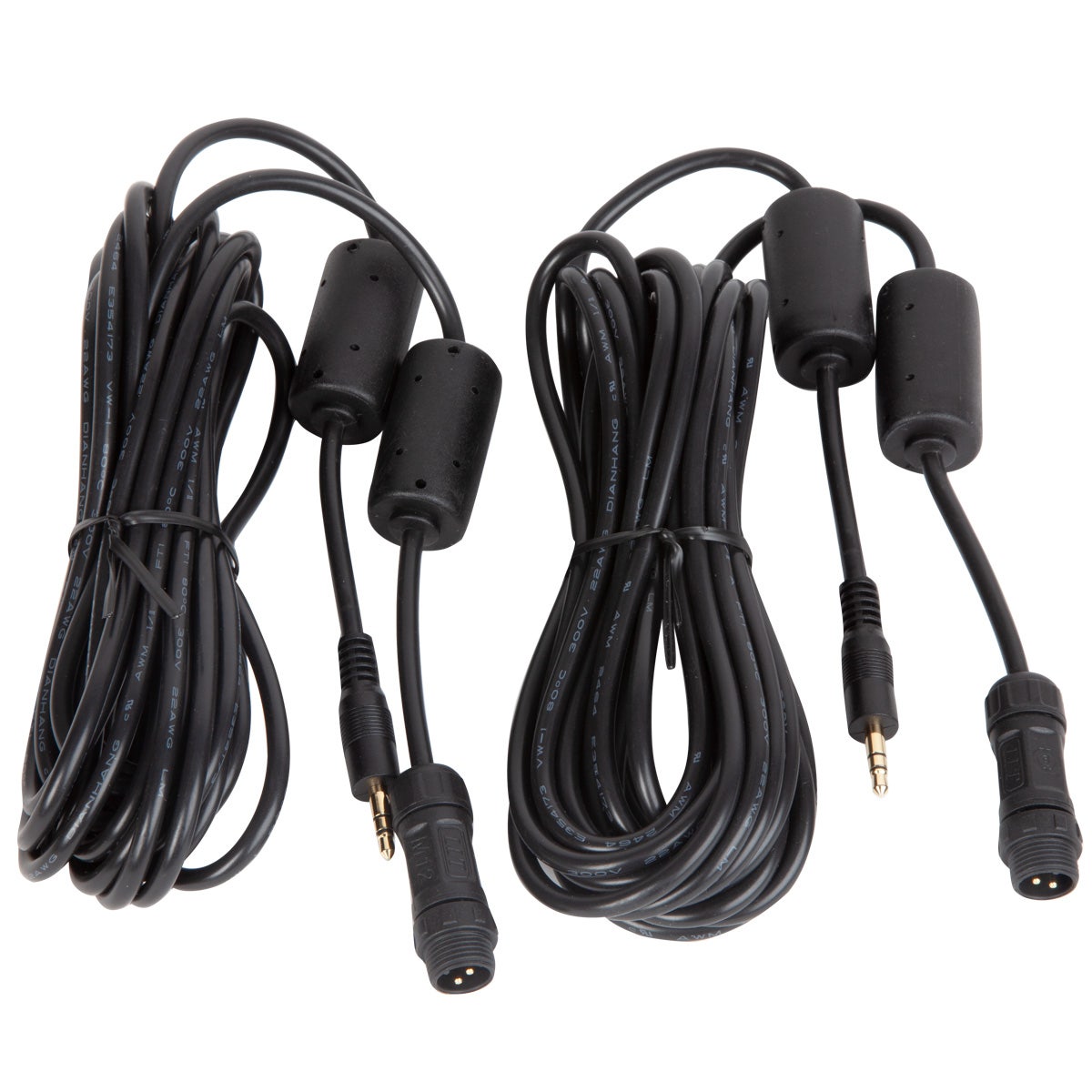

1 x Control Panel Plus, 1 x power supply, 2 x mounting screws, 2 x temperature probes, 2 x LED connection cables, 2 x HID connection cables
How the Control Panel Plus Works
The Control Panel Plus brings the best out of Lumatek lighting equipment, opening up an array of features.
Features include sunrise / sunset (with durations up to 30 minutes), auto-dimming to keep temperatures bang-on at all times, and auto-shutdown should heat levels ever build up to dangerous levels.
Power adaptor: 100 - 240V AC 50/60Hz – DC 5V/2A
Match HID ballast: 315w, 600w, 630w, 1000w
Match LED driver: 90w, 465w, 600w, 1000w
Power dimming range: 10% - 115%
Power regulation accuracy: 1%
Temperature-controlled safety dimming range: 0ºC - 40ºC
Temperature-controlled safety switching range: 10ºC - 50ºC
Sunrise and sunset duration: 0 - 30 min
Dimensions: 125mm x 80mm x 25mm
