FloraFlex 3/4" Flora Pipe Fittings – Build, Control & Vent Your Mainline
These 3/4" FloraFlex Flora Pipe components let you assemble a clean, high‑flow irrigation mainline and keep it running smoothly. Choose from straight fittings, elbows, an inline shutoff valve, or an air bleed valve to purge trapped air. Mix and match to route lines neatly, isolate zones, and maintain consistent pressure across your system.
Options (Select Size/Type)
- 3/4" Flora Pipe Fitting (Straight Coupler) – Join two lengths of 3/4" Flora Pipe for extended runs

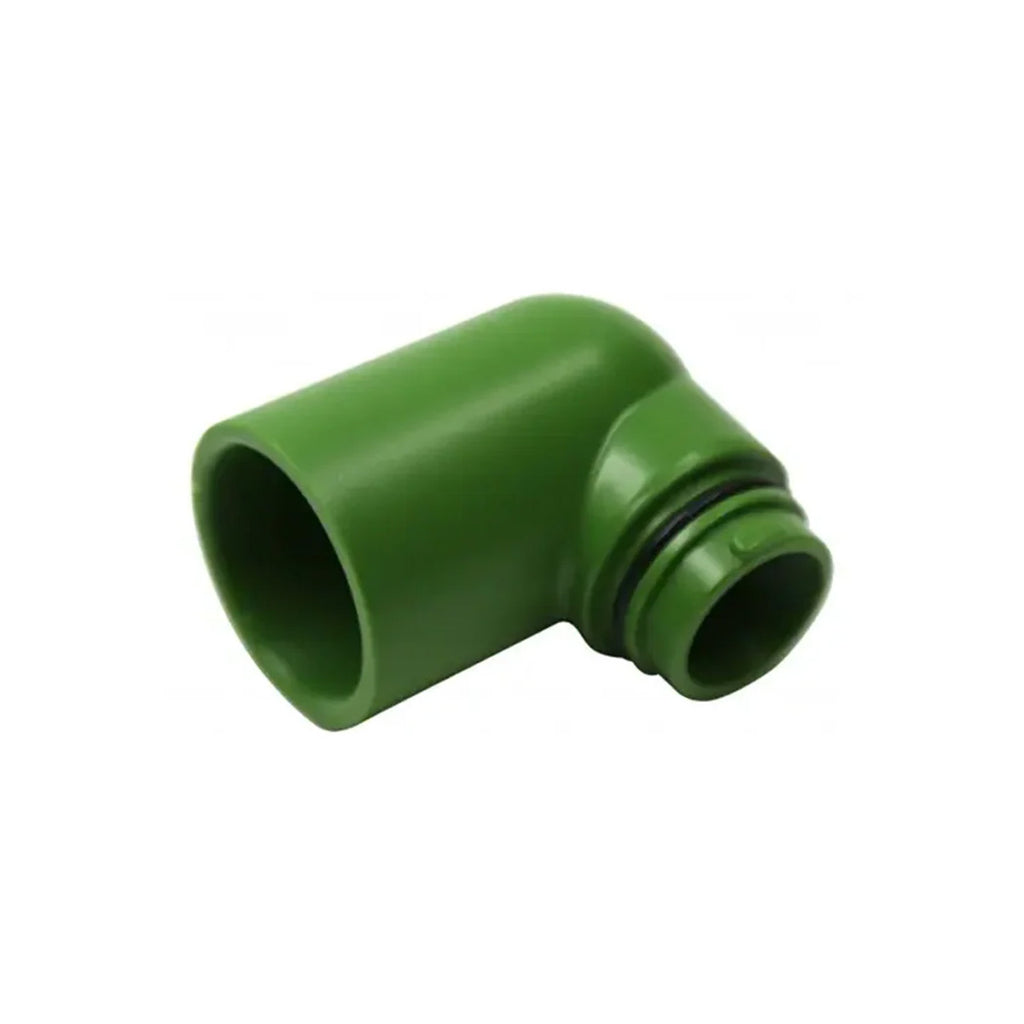

- 3/4" Flora Elbow Flora Pipe Fitting (90°) – Make tidy right‑angle turns without kinks or flow loss

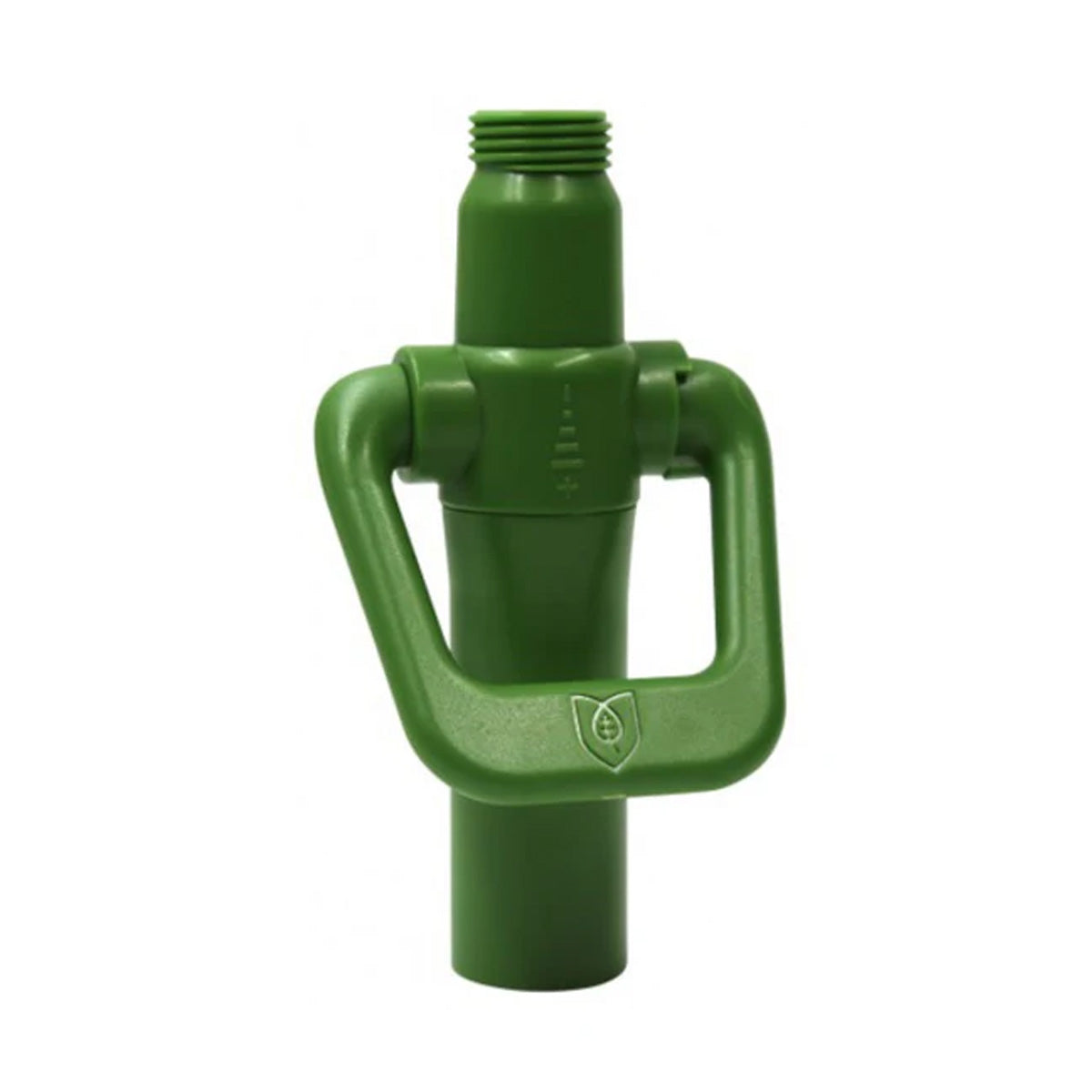

- 3/4" Flora Valve – Inline shutoff for isolating zones, servicing, or balancing flow

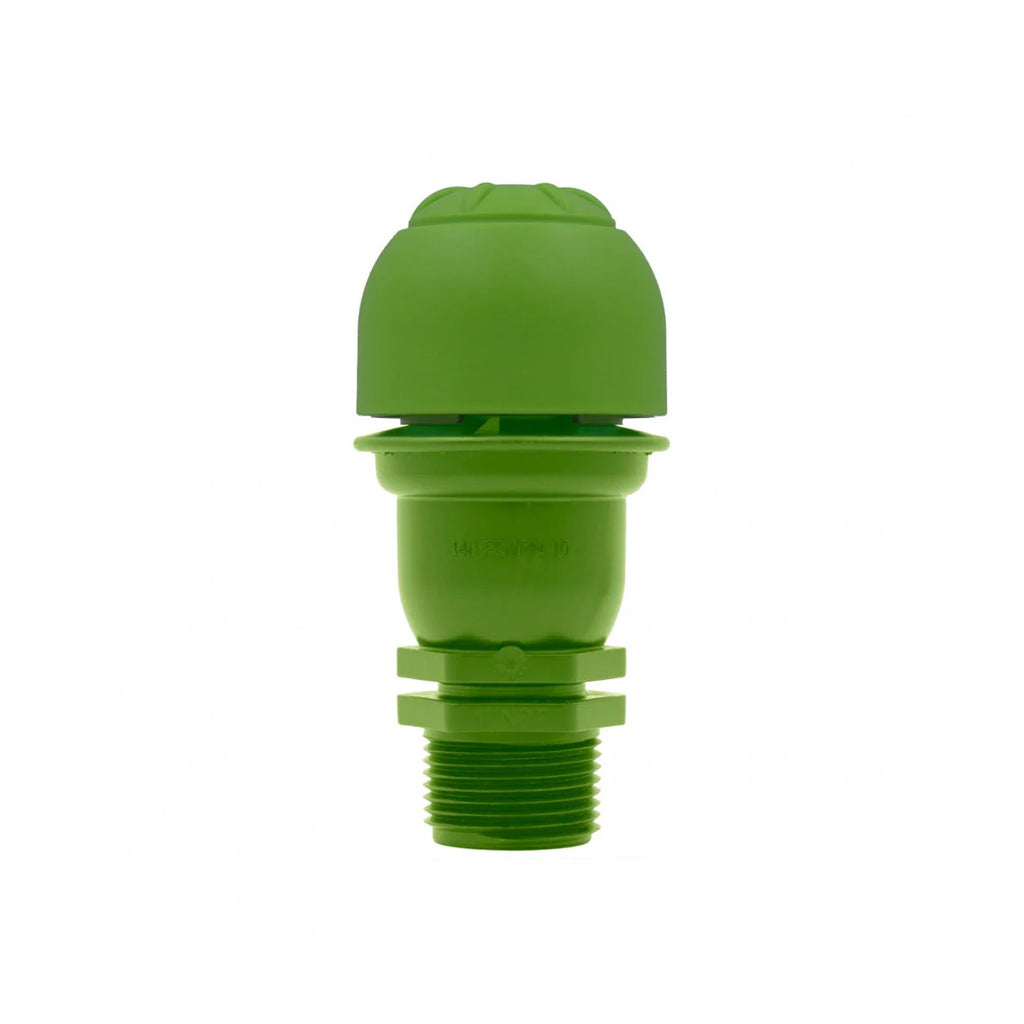

- 3/4" Flora Air Bleed Valve – Automatically vents trapped air from the line to prevent sputter and uneven feeding
Why Use Them
- Neat, rigid mainlines: Create straight, professional pipe runs in tents or rooms
- Pressure consistency: Valves and vents help maintain even delivery to every manifold
- Service friendly: Shut off sections for maintenance or flushing without stopping the whole system
Compatibility
- For FloraFlex 3/4" Flora Pipe mainline (rigid)
- Interfaces cleanly with FloraFlex Multi Flow/Quick Disconnect Manifolds, 1/4" lines, and Matrix/Dripper top‑feed hardware via your chosen manifold
Install Notes
- Cut pipe square and deburr for a proper seal
- Push‑fit firmly until fully seated; use clips/brackets to support long runs
- Place Air Bleed Valve at high points to purge air on startup
- Use the Flora Valve before each manifold to balance zones or isolate for service
Tip: Add one Flora Valve per zone and one Air Bleed Valve on each mainline high point for the most consistent start‑ups and feeds.
