AC Infinity IonFrame EVO LED Grow Light

AC Infinity IonFrame EVO - Commercial-Grade LED Light for Every Size of Grow

The IonFrame EVO range is AC Infinity's commercial-class bar lighting, built around Samsung LM301H EVO diodes, the most efficient horticultural diode Samsung makes. Efficient diodes mean more usable light reaching your canopy and less of your electricity wasted as heat, so you get bigger yields per watt and a grow room that is far easier to keep in range.

The bar-style frame spreads its diodes using AC Infinity's algorithmic layout, evening out coverage and cutting the hotspots you get from blockier panels. Add UV and far-red diodes for a genuine full spectrum, a removable serviceable driver and an IP65-rated steel and aluminium body, and this is lighting built to earn its place for years. Every model is dimmable and daisy-chainable, and works with AC Infinity UIS (Universal Interface System, AC Infinity's connected device ecosystem) controllers for automatic scheduling and dimming.

Choose your model

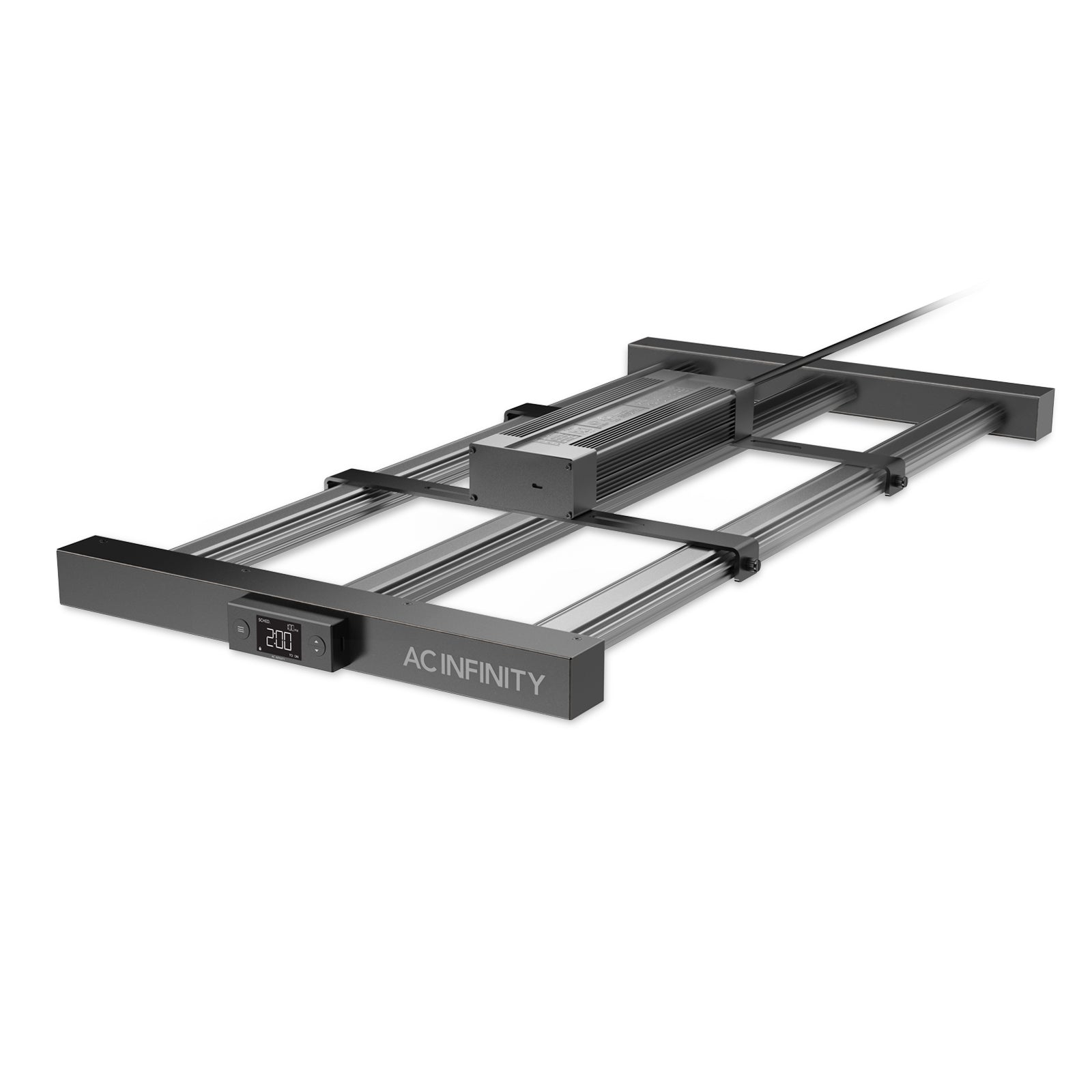

• EVO3 (280W) flowers around 0.6m x 1.2m, ideal for a narrow tent or veg.

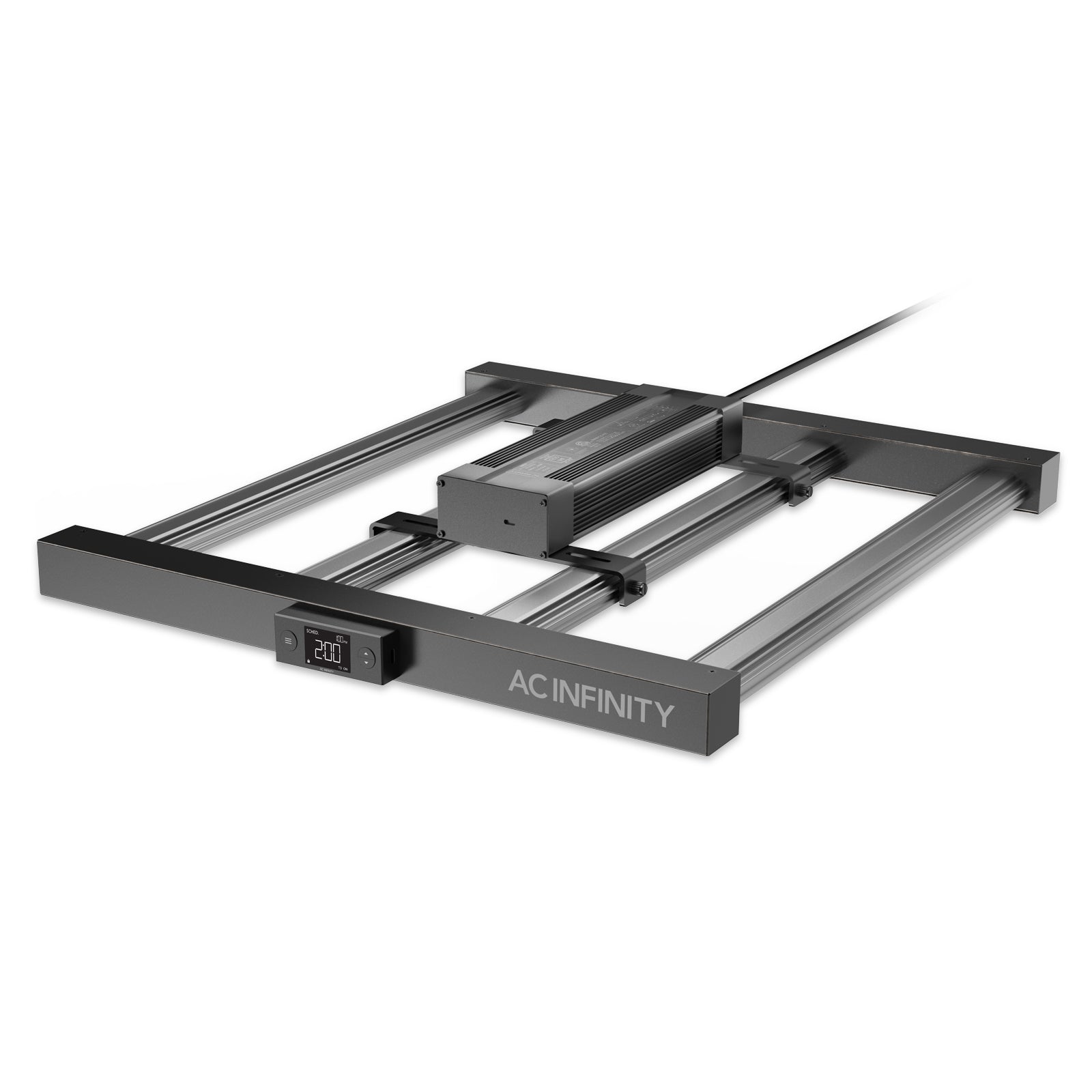

• EVO4 (300W) flowers around 0.9m x 0.9m.

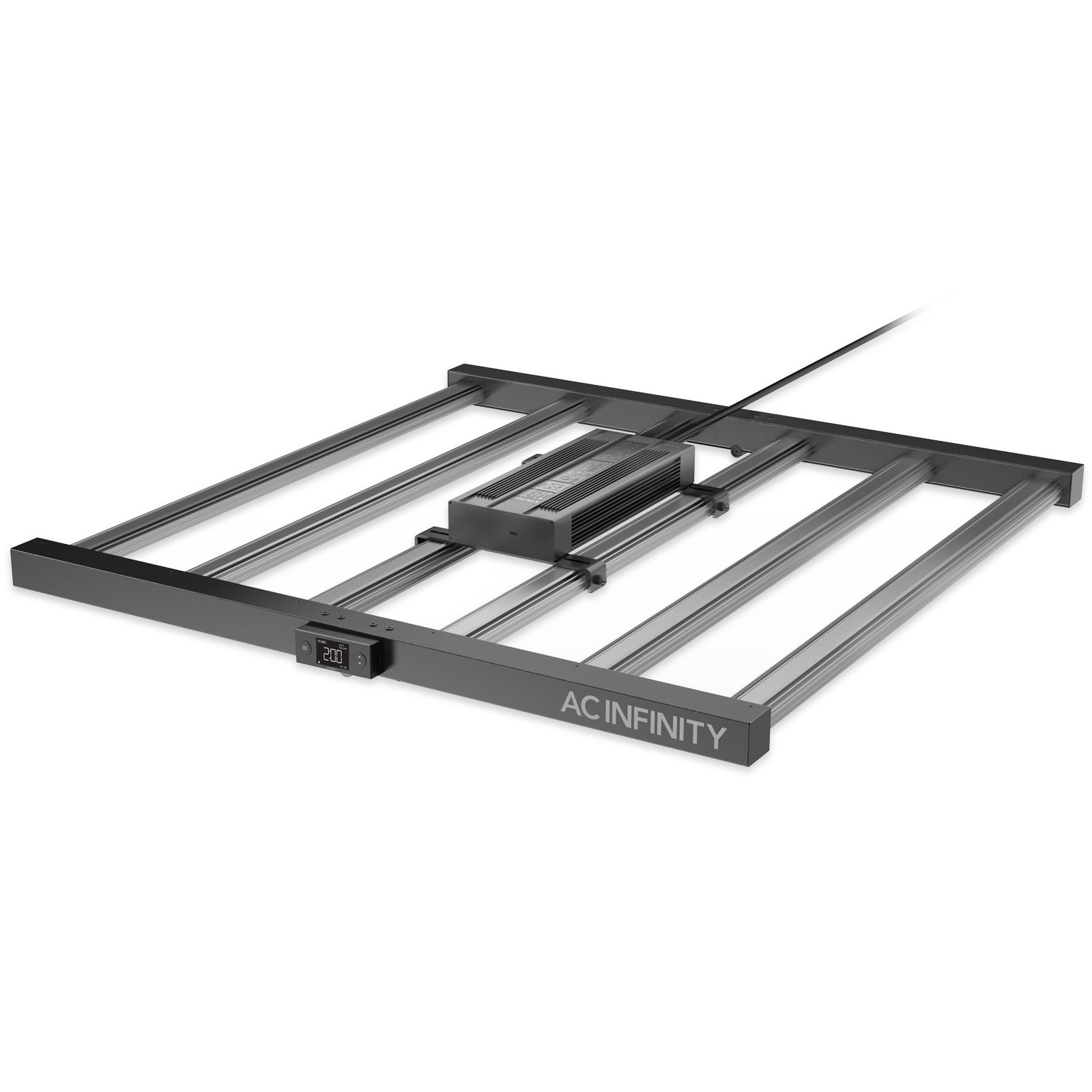

• EVO6 (500W) flowers a full 1.2m x 1.2m, the most popular size.

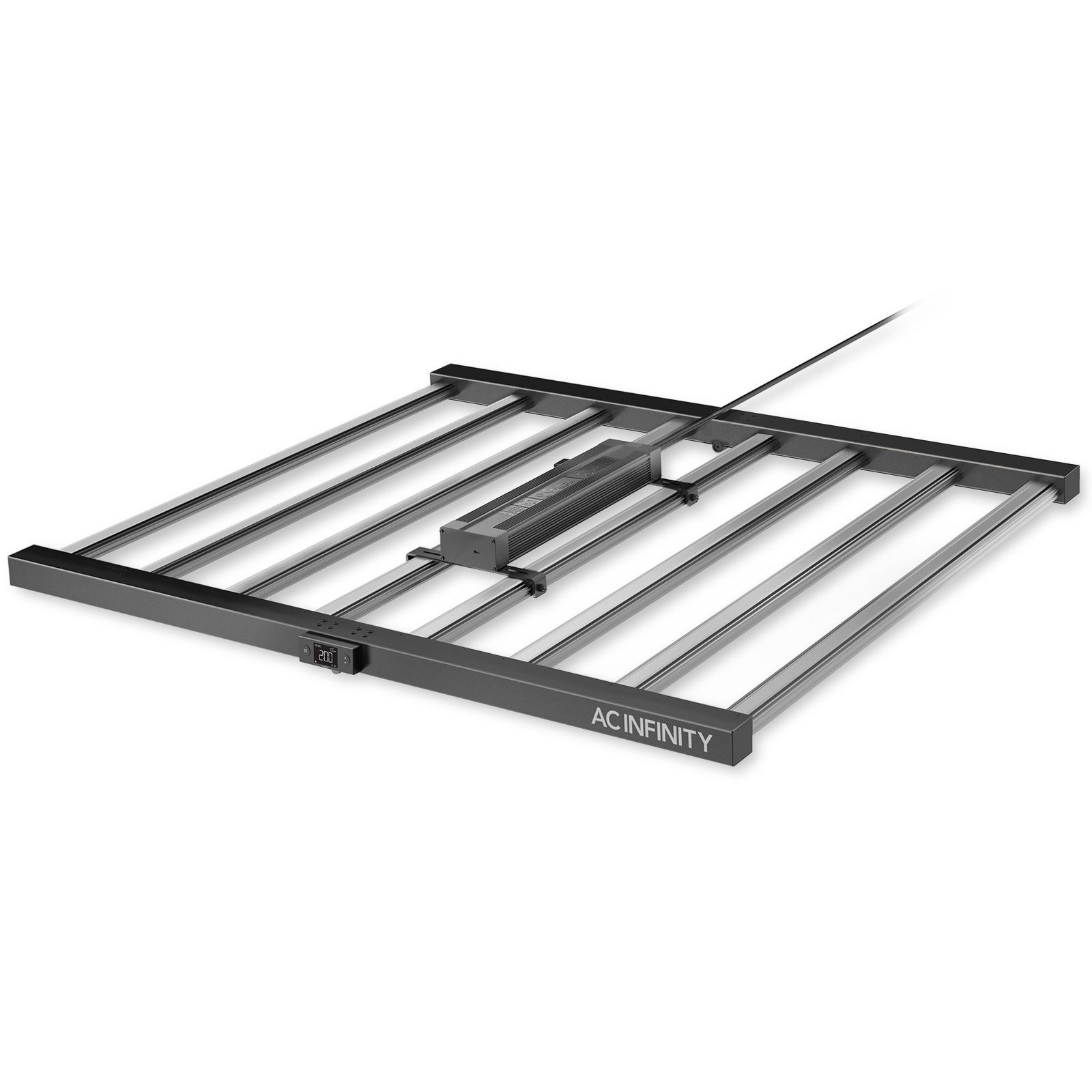

• EVO8 (730W) flowers around 1.5m x 1.5m.

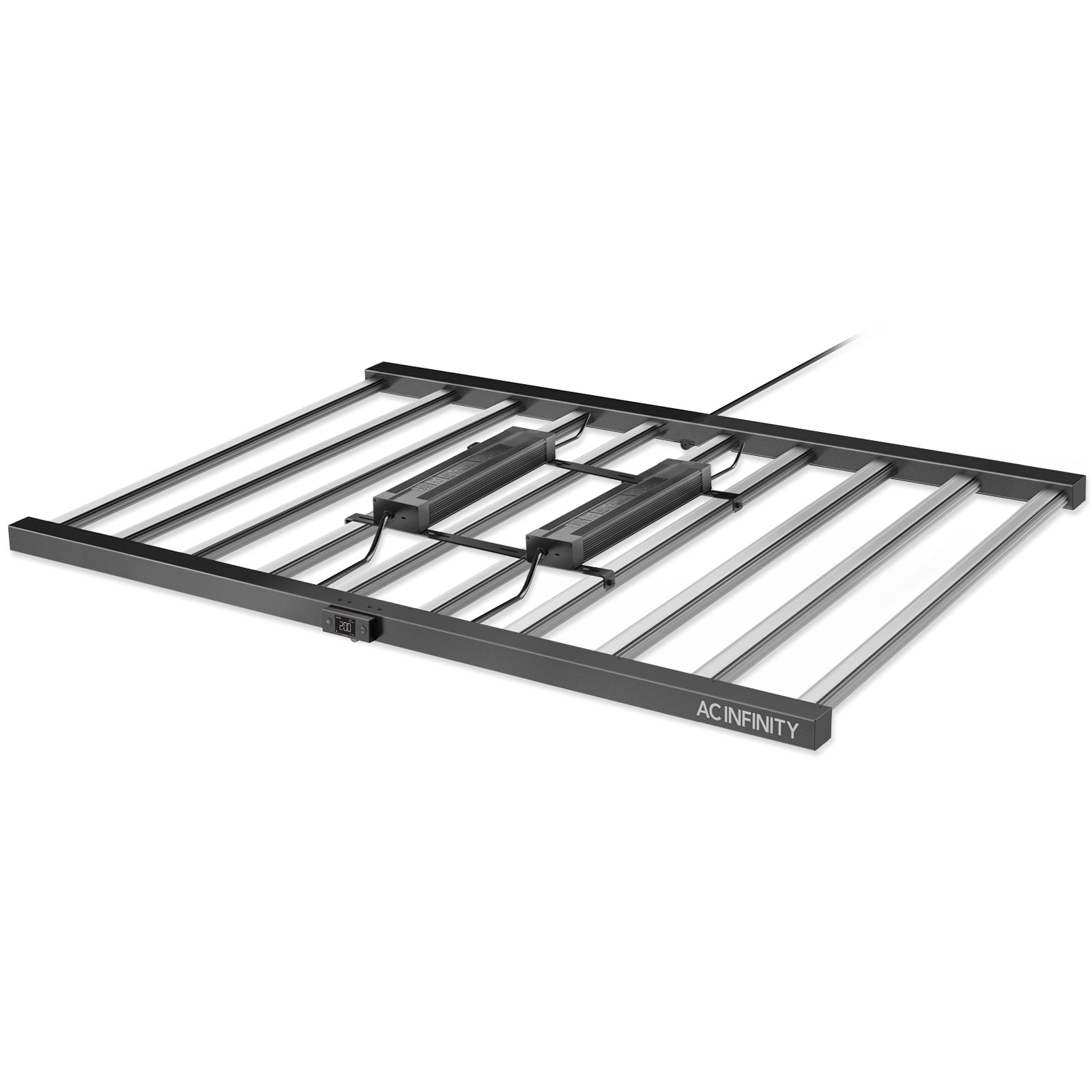

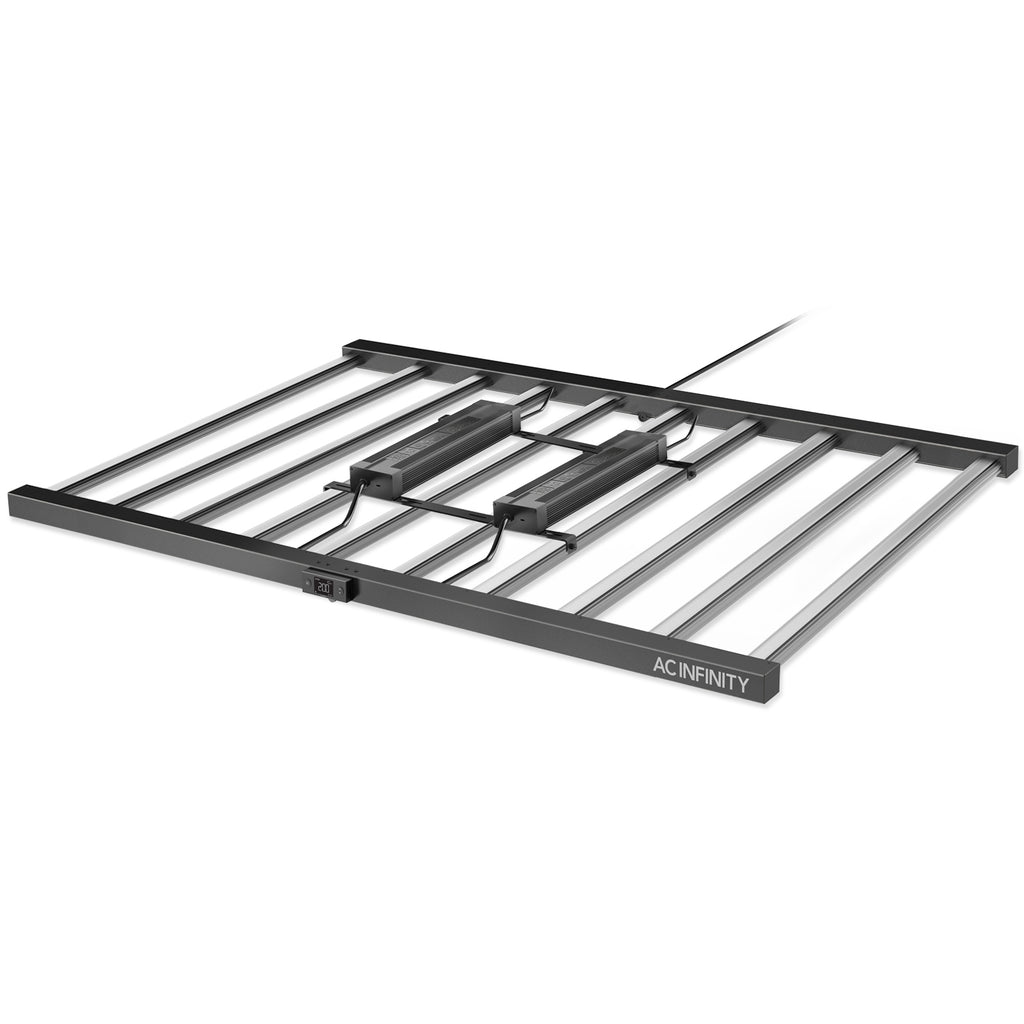

• EVO10 (1000W) the flagship, for the largest tents up to around 1.5m x 1.5m and beyond.

What it does for your grow

• Samsung LM301H EVO diodes for class-leading efficiency and yields per watt.
• Full spectrum with added UV and far-red for quality and density.
• Even canopy coverage from algorithmically spaced diodes.
• Runs cooler than HPS, making your grow room easier to manage.
• Dimmable and daisy-chainable with UIS controller support.

Who it is for?

The IonFrame EVO suits growers who want commercial-grade results and a light that will last. Match the model to your grow tent footprint, and pair with a UIS controller to schedule and dim automatically.

Specifications

Diodes	Samsung LM301H EVO, plus OSRAM 660nm red, 730nm far-red and 395nm UV
Efficacy	Up to 3.14 umol/J PPE
Flower coverage	EVO3 ~0.6x1.2m, EVO4 ~0.9x0.9m, EVO6 ~1.2x1.2m, EVO8 ~1.5x1.5m, EVO10 ~1.5x1.5m
Build	IP65-rated steel and aluminium, removable driver, dimmable, daisy-chainable
Platform	AC Infinity UIS

Frequently asked questions

Which model suits my tent?
Match flower coverage to your footprint: EVO4 for 0.9m x 0.9m, EVO6 for 1.2m x 1.2m, EVO8 for 1.5m x 1.5m.

Can I dim and automate them?
Yes. Every EVO is dimmable and works with AC Infinity UIS controllers for automatic scheduling and dimming.

Do they replace HPS?
Yes, they match or beat equivalent HPS on yield while drawing less power and producing far less heat.

Can I link several together?
Yes, the EVO range daisy-chains for larger rooms.
